2027 Keystone Fuzion Impact Edition 361LT specs & floorplan
Fifth-wheel toy hauler · 2027 model year
Explore the 2027 Keystone Fuzion Impact Edition 361LT specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-23. View manufacturer specifications ↗
Manufacturer pricing
Published MSRP
$81,995
Price details
Manufacturer-published MSRP for this model. Exact build, options, destination charges, taxes and dealer fees may differ.
Price source checked · View manufacturer pricing.
This is a manufacturer reference price, not a dealer sale price or an out-the-door quote.

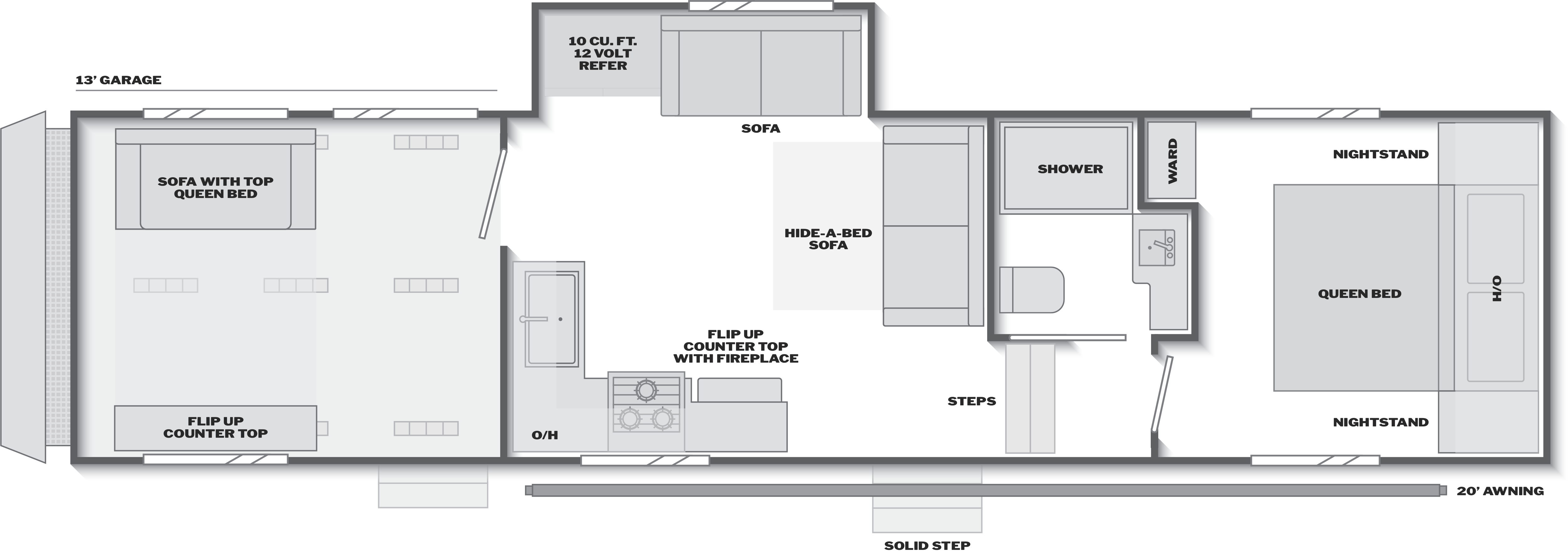

© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 39′ 11″
- Unloaded weight
- 11,910 lb
- Sleeps
- 8
Weight basis: Manufacturer shipping weight.
Dealer pricing · USD
Dealer prices & price history
Advertised price history
Price history starts with our first observation. A trend will appear after more daily checks.
Dealer prices
No recently verified advertised prices for this model. This does not mean no dealers have it in stock.
About these prices
New units only. Prices are advertised offers from a small sample of dealers, not an exhaustive nationwide search or an out-the-door quote. Options and equipment vary by unit.
Listings are due for a new check every 48 hours. Initial collection and source failures can delay updates.
Price history observations begin when tracking starts; earlier discounts are not reconstructed. History includes listings that may no longer be available.
Dimensions & weights
- Exterior length
- 39′ 11″
- Garage length
- 13′ 0″
- Exterior width
- Not verified
- Exterior height
- 13′ 3″
- Shipping / unloaded weight
- 11,910 lb
- GVWR
- Not verified
- Listed cargo capacity
- 3,890 lb
- Listed hitch weight
- 2,565 lb
Living & sleeping
- Sleeping capacity
- 8
- Slide-outs
- Not verified
- Main bed
- Queen (size not published)
- Bunk beds
- ✓ Yes
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- 10 cu. ft. 12V refrigerator
Tanks & everyday features
- Fresh water
- 94 gal
- Gray water
- 88 gal
- Black water
- 44 gal
- Awning length
- Not verified
- Shore power / electrical service
- 50 amp standard
- Solar equipment
- SolarFlex™ Protect 220
- Outdoor kitchen
- No
- Washer/dryer prep
- No
- Microwave
- ✓ Yes
- Cooktop
- Not verified
- Air conditioning
- Chill cube A/C; 2nd ¾ ton A/C; Ducted A/C, ducted heat
- Electric fireplace
- ✓ Yes
- Backup camera
- Not verified
- Propane tanks
- 2
- Tire size
- ST235/80R18G
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
