2027 Coachmen Pixel P1.8RB specs & floorplan
Class B · Gas · 2027 model year
Explore the 2027 Coachmen Pixel P1.8RB specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-27. View manufacturer specifications ↗
Manufacturer pricing
MSRP not verified
Price details
No model-specific price was found in the manufacturer information checked.
Price source checked .
Prices are not estimated from other models, model years or dealer asking prices.

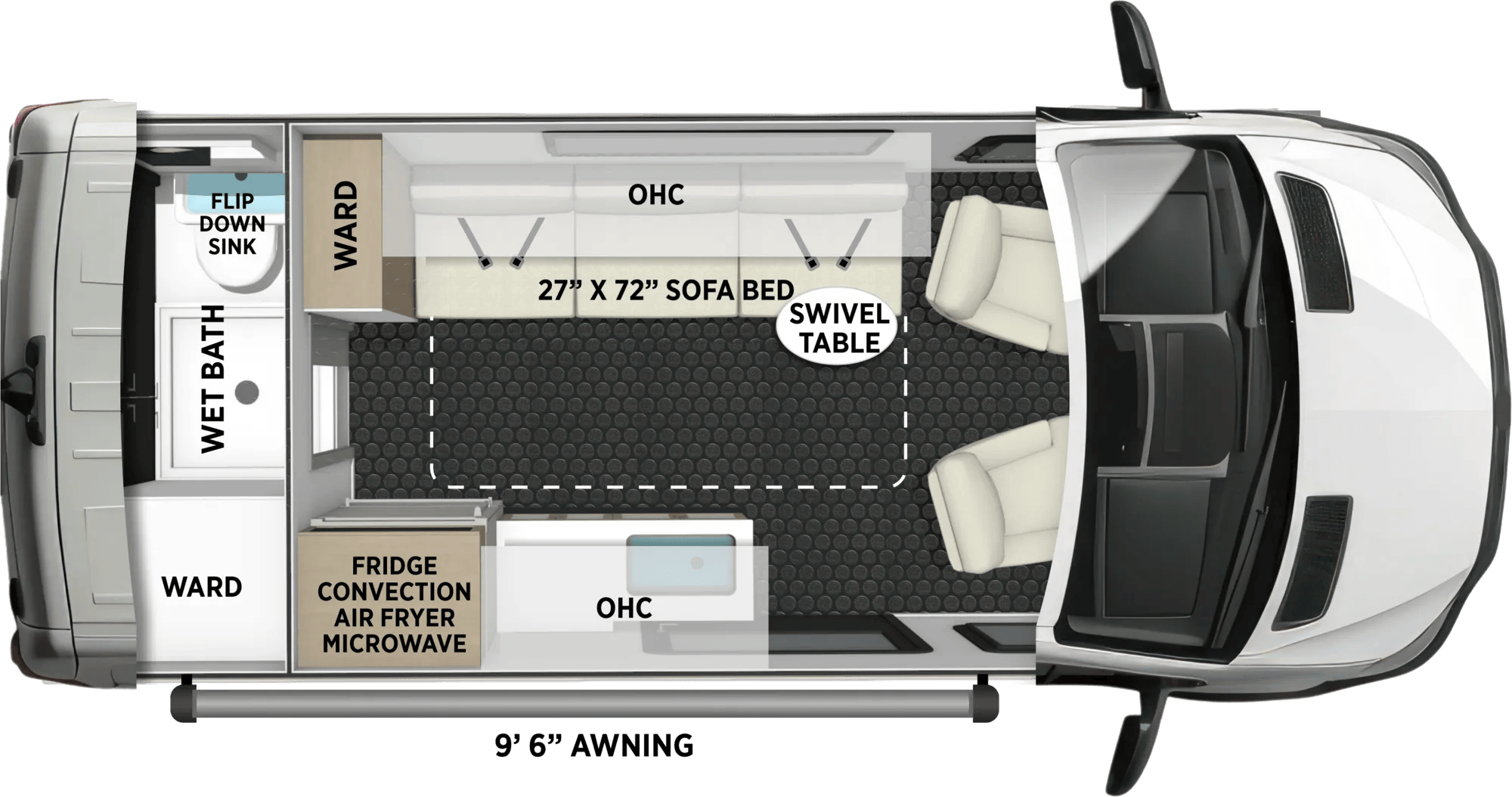

© Coachmen. Illustration may show optional equipment.
At a glance
- Engine fuel type
- Gas
- Exterior length
- 17′ 9″
- GVWR
- 8,900 lb
Weight basis: Unloaded vehicle weight not published.
Exact2027 own model quantities retained; unloaded/cargo/hitch weight, sleeping count and installed exterior kitchen unverified.30amp SmartPlug is an inlet listing, not an independently verified service rating. Own full original visually reviewed: Convertible sofa/twin/folding/Murphy sleeping and optional roof configurations do not establish dedicated bunk presence or absence; bunks remain unknown. Original awning label conflicts with own table: 9ft6in versus9ft. Black tank0gal is published with a cassette toilet; cassette capacity unknown. Optional pop-top/solar/awning configurations not assumed installed.
Dealer pricing · USD
Dealer prices & price history
Advertised price history
Price history starts with our first observation. A trend will appear after more daily checks.
Dealer prices
No recently verified advertised prices for this model. This does not mean no dealers have it in stock.
About these prices
- New units only. Prices are advertised offers from a small sample of dealers, not an exhaustive nationwide search or an out-the-door quote. Options and equipment vary by unit.
- Listings are re-checked every 48 hours, and the lowest-priced unit is re-checked daily. Initial collection and source failures can delay updates.
- Price history observations begin when tracking starts; earlier discounts are not reconstructed. History includes listings that may no longer be available.
Payment calculator
Adjust price, down payment, rate and termTap to adjust—/moEnter a price to estimate a payment
- Amount financed
- —
- Total interest
- —
- Total of payments
- —
About this estimate
- An estimate for comparison only, not a loan offer. Your rate and term depend on credit, lender, down payment and the RV.
- Sales tax is applied to the price minus the trade-in value. Some states tax RVs differently.
- Tax and fees are added to the amount financed.
- Typical terms used: 10 years under $25,000 financed, 15 years up to $100,000 and 20 years above.
Motorhome
- Engine fuel type
- Gas
- Chassis
- RAM ProMaster 2500 High-Roof Van
- Engine
- 3.6L Pentastar V6 Gas Engine;280HP (own brochure column)
- GCWR
- 12,000 lb
- Published towing / receiver rating
- Not verified
- Fuel tank capacity
- 24 gal
Dimensions & weights
- Exterior length
- 17′ 9″
- Exterior width
- 6′ 8″
- Exterior height
- 9′ 7″
- Shipping / unloaded weight
- Not verified
- GVWR
- 8,900 lb
- Listed cargo capacity
- Not verified
- Listed hitch weight
- Not verified
Living & sleeping
- Sleeping capacity
- Not verified
- Slide-outs
- 0
- Main bed
- 27 × 72 in sofa bed shown; expanded sleeping size unverified
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Wet bathroom shown; cassette toilet explicitly standard, separate cassette capacity unverified
- Refrigerator
- Conflicting data
Tanks & everyday features
- Fresh water
- 26 gal
- Gray water
- 26 gal
- Black water
- 0 gal
- Awning length
- Conflicting data
- Shore power / electrical service
- 30 amp SmartPlug listed; service not verified
- Solar equipment
- 200W standard; optional pop-top/190W availability unverified for P1.8RB
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- Loose-loaded induction cooktop
- Air conditioning
- Conflicting data
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
Exact2027 own model quantities retained; unloaded/cargo/hitch weight, sleeping count and installed exterior kitchen unverified.30amp SmartPlug is an inlet listing, not an independently verified service rating. Own full original visually reviewed: Convertible sofa/twin/folding/Murphy sleeping and optional roof configurations do not establish dedicated bunk presence or absence; bunks remain unknown. Original awning label conflicts with own table: 9ft6in versus9ft. Black tank0gal is published with a cassette toilet; cassette capacity unknown. Optional pop-top/solar/awning configurations not assumed installed.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
