2027 Leisure Travel Vans Unity U24CB Corner Bed specs & floorplan
Class C · Diesel · 2027 model year
Explore the 2027 Leisure Travel Vans Unity U24CB Corner Bed specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-26. View manufacturer specifications ↗
Manufacturer pricing
MSRP not verified
Price details
No model-specific price was found in the manufacturer information checked.
Price source checked .
Prices are not estimated from other models, model years or dealer asking prices.

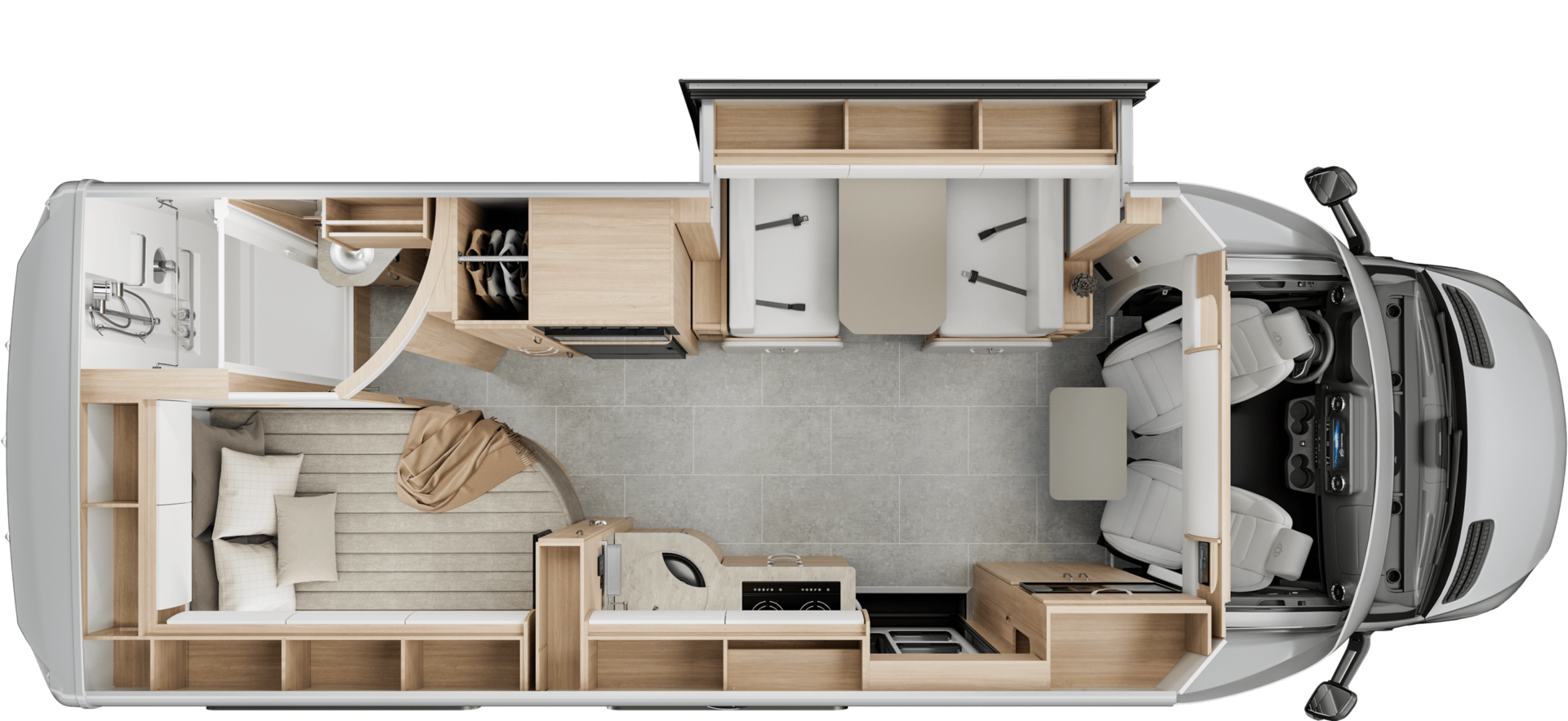

© Leisure Travel Vans / Triple E RV. Illustration may show optional equipment.
At a glance
- Engine fuel type
- Diesel
- Exterior length
- 25′ 1″
- GVWR
- 11,030 lb
Weight basis: Unloaded vehicle weight not published.
Dimensions and capacities are approximate; US gallons retained separately from litres. Chassis model year may differ from RV model year. AWD, solar panels, additional batteries, inflatable beds, exterior entertainment and special-edition packages are optional, not assumed installed. Numeric sleeping capacity, total slides, unloaded/cargo/hitch weights and GCWR/towing remain unverified.30amp cord does not independently verify shore service. Published Twin/King or Murphy beds are not dedicated bunk beds. TBX tank capacities conflict between primary and printed2027 brochure and remain unknown.
Dealer pricing · USD
Dealer prices & price history
Advertised price history
Price history starts with our first observation. A trend will appear after more daily checks.
Dealer prices
No recently verified advertised prices for this model. This does not mean no dealers have it in stock.
About these prices
- New units only. Prices are advertised offers from a small sample of dealers, not an exhaustive nationwide search or an out-the-door quote. Options and equipment vary by unit.
- Listings are re-checked every 48 hours, and the lowest-priced unit is re-checked daily. Initial collection and source failures can delay updates.
- Price history observations begin when tracking starts; earlier discounts are not reconstructed. History includes listings that may no longer be available.
Payment calculator
Adjust price, down payment, rate and termTap to adjust—/moEnter a price to estimate a payment
- Amount financed
- —
- Total interest
- —
- Total of payments
- —
About this estimate
- An estimate for comparison only, not a loan offer. Your rate and term depend on credit, lender, down payment and the RV.
- Sales tax is applied to the price minus the trade-in value. Some states tax RVs differently.
- Tax and fees are added to the amount financed.
- Typical terms used: 10 years under $25,000 financed, 15 years up to $100,000 and 20 years above.
Motorhome
- Engine fuel type
- Diesel
- Chassis
- Mercedes-Benz Sprinter3500 dual rear wheel, 170in wheelbase
- Engine
- 2.0L turbo I4 diesel, 208HP / 332lb-ft, 9G-Tronic automatic
- GCWR
- Not verified
- Published towing / receiver rating
- Not verified
- Fuel tank capacity
- 25 gal
Dimensions & weights
- Exterior length
- 25′ 1″
- Exterior width
- 7′ 11″
- Exterior height
- 10′ 6″
- Shipping / unloaded weight
- Not verified
- GVWR
- 11,030 lb
- Listed cargo capacity
- Not verified
- Listed hitch weight
- Not verified
Living & sleeping
- Sleeping capacity
- Not verified
- Slide-outs
- Not verified
- Main bed
- Corner Bed with Decorative Bedspread (52" × 76" Sleeping Area)
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Bathroom with separate shower
- Refrigerator
- 6.2 cu ft compressor refrigerator/freezer
Tanks & everyday features
- Fresh water
- 37 gal
- Gray water
- 35 gal
- Black water
- 31 gal
- Awning length
- Not verified
- Shore power / electrical service
- 30 amp power cord listed; service not verified
- Solar equipment
- 440 W solar panels optional
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- 2-burner induction cooktop
- Air conditioning
- Not verified
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
Dimensions and capacities are approximate; US gallons retained separately from litres. Chassis model year may differ from RV model year. AWD, solar panels, additional batteries, inflatable beds, exterior entertainment and special-edition packages are optional, not assumed installed. Numeric sleeping capacity, total slides, unloaded/cargo/hitch weights and GCWR/towing remain unverified.30amp cord does not independently verify shore service. Published Twin/King or Murphy beds are not dedicated bunk beds. TBX tank capacities conflict between primary and printed2027 brochure and remain unknown.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
