2027 Roadtrek Wave specs & floorplan
Class B · Gas · 2027 model year
Explore the 2027 Roadtrek Wave specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-27. View manufacturer specifications ↗
Manufacturer pricing
Manufacturer starting price
$156,888
Price details
Manufacturer published USD model price before selected paid options, freight, taxes and dealer fees. Not a dealer sale price or out-the-door quote; confirm configuration and availability.
Price source checked · View manufacturer pricing.
This is a manufacturer reference price, not a dealer sale price or an out-the-door quote.

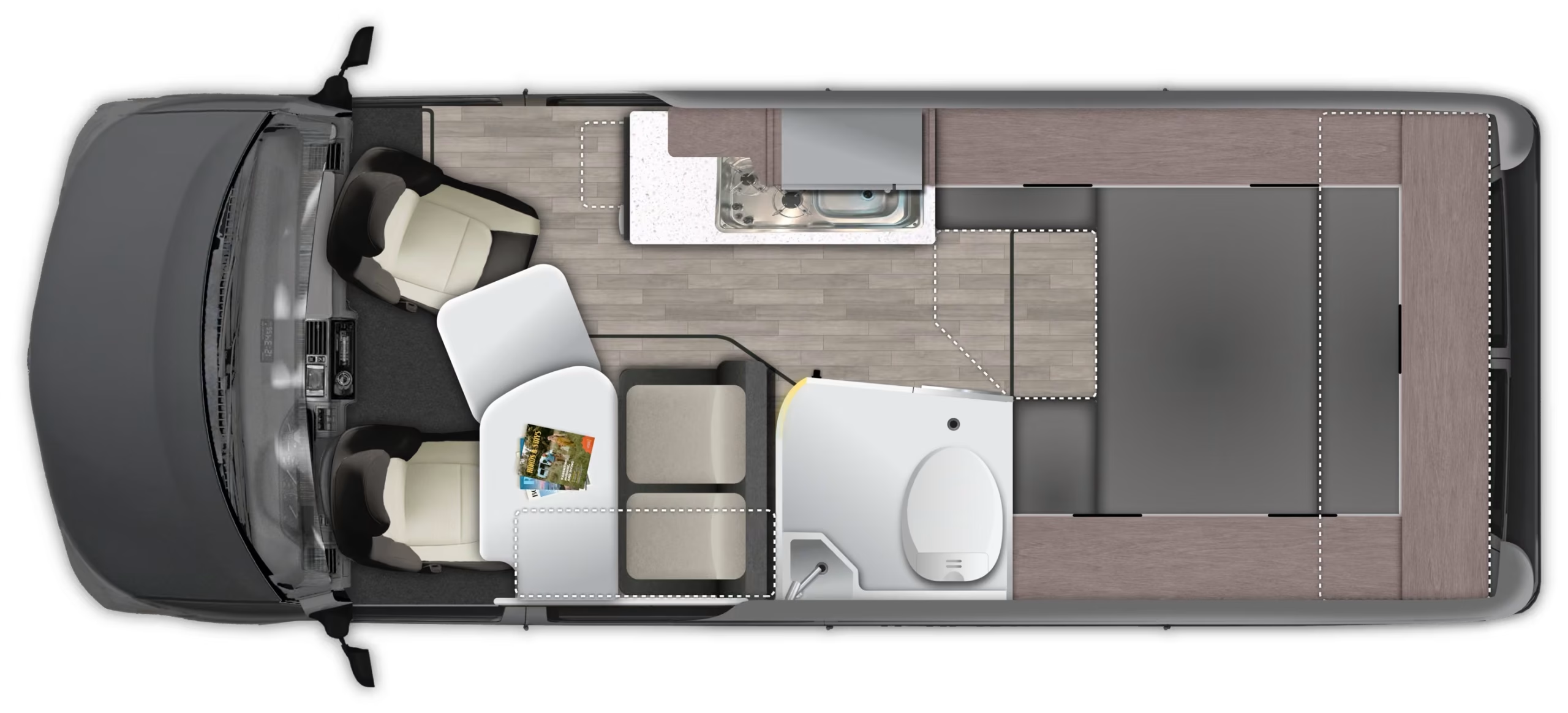

© Roadtrek. Illustration may show optional equipment.
At a glance
- Engine fuel type
- Gas
- Exterior length
- 20′ 9.02″
- Unloaded weight
- 7,718 lb
- GVWR
- 9,350 lb
- Sleeps
- 4
Weight basis: Manufacturer dry weight where published; OCCC includes occupants.
Widths exclude mirrors; heights include roof A/C. Numeric metric source values are converted without changing their scope. Chassis year2026 is separate from coach model year2027. Occupant-and-cargo allowance includes people. Receiver, tongue limit and actual towing capacity are separate. Optional mattresses, seats, induction, solar and batteries are not installed defaults. Own complete day and night originals reviewed: convertible rear twins/sofa/king configurations and optional front sleeping remain qualified; dedicated bunk presence/absence unverified. Gray-tank unit figures conflict between primary and sell sheet.
Dealer pricing · USD
Dealer prices & price history
Advertised price history
Price history starts with our first observation. A trend will appear after more daily checks.
Dealer prices
No recently verified advertised prices for this model. This does not mean no dealers have it in stock.
About these prices
- New units only. Prices are advertised offers from a small sample of dealers, not an exhaustive nationwide search or an out-the-door quote. Options and equipment vary by unit.
- Listings are re-checked every 48 hours, and the lowest-priced unit is re-checked daily. Initial collection and source failures can delay updates.
- Price history observations begin when tracking starts; earlier discounts are not reconstructed. History includes listings that may no longer be available.
Payment calculator
Adjust price, down payment, rate and termTap to adjust$1,269/mo20 years at 8.99% APR
- Amount financed
- $141,199
- Total interest
- $163,480
- Total of payments
- $304,679
About this estimate
- An estimate for comparison only, not a loan offer. Your rate and term depend on credit, lender, down payment and the RV.
- Starts from the manufacturer price.
- Sales tax is applied to the price minus the trade-in value. Some states tax RVs differently.
- Tax and fees are added to the amount financed.
- Typical terms used: 10 years under $25,000 financed, 15 years up to $100,000 and 20 years above.
Motorhome
- Engine fuel type
- Gas
- Chassis
- 2026 RAM Promaster 3500 159” EXT Van w/3.6L V6 – 9 spd transmission
- Engine
- 3.6L gas V6,24-valve; manufacturer lists280HP and automatic9-speed
- GCWR
- Not verified
- Published towing / receiver rating
- 3,500 lb
- Fuel tank capacity
- 24 gal
Dimensions & weights
- Exterior length
- 20′ 9.02″
- Exterior width
- 6′ 10.99″
- Exterior height
- 9′ 4.99″
- Shipping / unloaded weight
- 7,718 lb
- GVWR
- 9,350 lb
- Listed cargo capacity
- 2,174 lb
- Listed hitch weight
- Not verified
Living & sleeping
- Sleeping capacity
- 4
- Slide-outs
- Not verified
- Main bed
- Rear king/convertible sleeping: 71.0 × 69.0 in; manufacturer 1803.4 × 1752 mm
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Wet bath with cassette toilet, sink and shower
- Refrigerator
- 12V 3.2cuft compressor
Tanks & everyday features
- Fresh water
- 38 gal
- Gray water
- Conflicting data
- Black water
- 5 gal
- Awning length
- 13′ 0″
- Shore power / electrical service
- 30 amp standard external power connection
- Solar equipment
- 300 W
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- Two-burner propane standard; induction optional
- Air conditioning
- Truma Aventa Eco Roof Mount Air Conditioning, 13,500 BTU
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
Widths exclude mirrors; heights include roof A/C. Numeric metric source values are converted without changing their scope. Chassis year2026 is separate from coach model year2027. Occupant-and-cargo allowance includes people. Receiver, tongue limit and actual towing capacity are separate. Optional mattresses, seats, induction, solar and batteries are not installed defaults. Own complete day and night originals reviewed: convertible rear twins/sofa/king configurations and optional front sleeping remain qualified; dedicated bunk presence/absence unverified. Gray-tank unit figures conflict between primary and sell sheet.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
