2027 Storyteller Overland GEAR MODE MAX specs & floorplan
Class B · Diesel · 2027 model year
Explore the 2027 Storyteller Overland GEAR MODE MAX specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-27. View manufacturer specifications ↗
Manufacturer pricing
Manufacturer nationwide sales price
$187,493
Price details
Manufacturer See-Through nationwide sales price, rounded on its model page, not MSRP or a dealer inventory quote. Own 2027 GEAR MODE MAX window sticker lists MSRP $262,490.79 and sales price $187,493.42. Nationwide destination included; dealer fees and individual taxes extra. Confirm current price and availability.
Price source checked · View manufacturer pricing.
This is a manufacturer reference price, not a dealer sale price or an out-the-door quote.

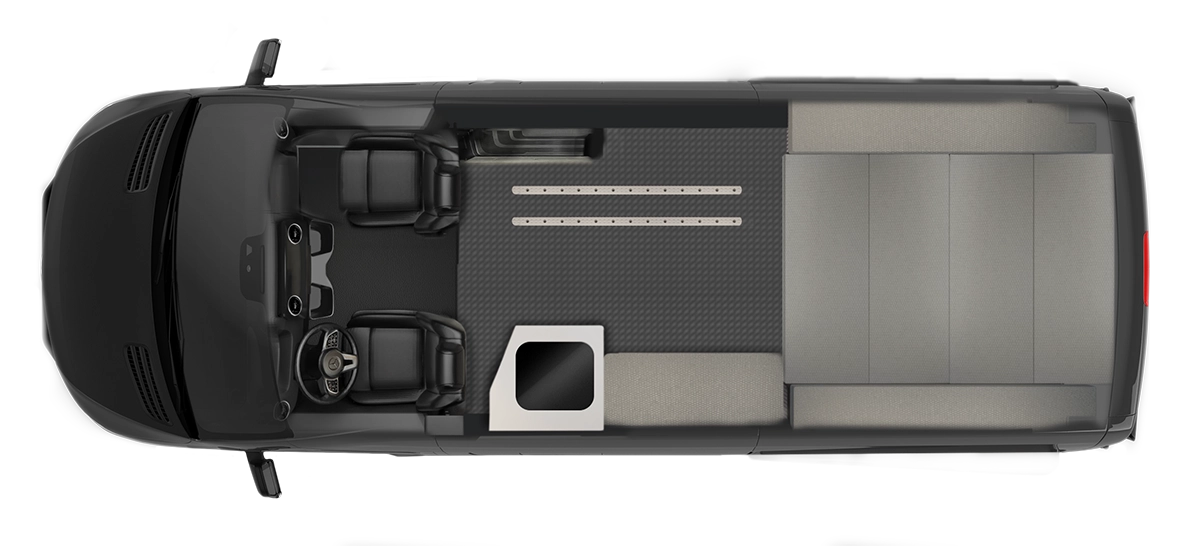

© Storyteller Overland. Illustration may show optional equipment.
At a glance
- Engine fuel type
- Diesel
- Exterior length
- 20′ 0″
Weight basis: Manufacturer weight where published.
GEAR MODE MAX is a separate trim of the 2027 Sprinter van. Body width excludes mirrors. Portable toilet capacity is separate from black holding tank capacity; solar is prewired capability, not installed panels. Modular gear storage alone does not establish a toy-hauler designation. Mattress dimensions, sleeping-person capacity and unpublished weight ratings remain unknown.
Dealer pricing · USD
Dealer prices & price history
Advertised price history
Price history starts with our first observation. A trend will appear after more daily checks.
Dealer prices
No recently verified advertised prices for this model. This does not mean no dealers have it in stock.
About these prices
- New units only. Prices are advertised offers from a small sample of dealers, not an exhaustive nationwide search or an out-the-door quote. Options and equipment vary by unit.
- Listings are re-checked every 48 hours, and the lowest-priced unit is re-checked daily. Initial collection and source failures can delay updates.
- Price history observations begin when tracking starts; earlier discounts are not reconstructed. History includes listings that may no longer be available.
Payment calculator
Adjust price, down payment, rate and termTap to adjust$1,517/mo20 years at 8.99% APR
- Amount financed
- $168,744
- Total interest
- $195,371
- Total of payments
- $364,115
About this estimate
- An estimate for comparison only, not a loan offer. Your rate and term depend on credit, lender, down payment and the RV.
- Starts from the manufacturer price.
- Sales tax is applied to the price minus the trade-in value. Some states tax RVs differently.
- Tax and fees are added to the amount financed.
- Typical terms used: 10 years under $25,000 financed, 15 years up to $100,000 and 20 years above.
Motorhome
- Engine fuel type
- Diesel
- Chassis
- Mercedes-Benz Sprinter 2500,144-inch wheelbase,High Roof,AWD
- Engine
- 4-cylinder high-output turbo diesel
- GCWR
- Not verified
- Published towing / receiver rating
- Not verified
- Fuel tank capacity
- 25 gal
Dimensions & weights
- Exterior length
- 20′ 0″
- Exterior width
- 6′ 8″
- Exterior height
- 10′ 0″
- Shipping / unloaded weight
- Not verified
- GVWR
- Not verified
- Listed cargo capacity
- Not verified
- Listed hitch weight
- Not verified
Living & sleeping
- Sleeping capacity
- Not verified
- Slide-outs
- Not verified
- Main bed
- GearShift modular RV queen-size bed; exact mattress dimensions unverified
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Portable toilet (2.6 gal); exterior shower; enclosed bathroom not verified
- Refrigerator
- 1.33 cu ft refrigerator/freezer
Tanks & everyday features
- Fresh water
- 20 gal
- Gray water
- 24 gal
- Black water
- Not verified
- Awning length
- 10′ 0″
- Shore power / electrical service
- 30 amp cord listed; service not verified
- Solar equipment
- Prewired for up to 1500 W solar; installed solar panels unverified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- Not verified
- Cooktop
- Portable induction cooktop
- Air conditioning
- 12V rooftop air conditioner, 10,000 BTU
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
GEAR MODE MAX is a separate trim of the 2027 Sprinter van. Body width excludes mirrors. Portable toilet capacity is separate from black holding tank capacity; solar is prewired capability, not installed panels. Modular gear storage alone does not establish a toy-hauler designation. Mattress dimensions, sleeping-person capacity and unpublished weight ratings remain unknown.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
