2027 Tiffin Open Trail 25 CO specs & floorplan
Class C · Diesel · 2027 model year
Explore the 2027 Tiffin Open Trail 25 CO specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-26. View manufacturer specifications ↗
Manufacturer pricing
MSRP not verified
Price details
No model-specific price was found in the manufacturer information checked.
Price source checked .
Prices are not estimated from other models, model years or dealer asking prices.
© Tiffin Motorhomes. Illustration may show optional equipment.
At a glance
- Engine fuel type
- Diesel
- Exterior length
- 25′ 6″
- GVWR
- 11,030 lb
- Sleeps
- 2
Weight basis: Unloaded vehicle weight not published.
Dimensions and capacities are approximate.4.5gal black capacity is a cassette toilet;24.5gal propulsion fuel excludes4.8gal DEF. Receiver5000lb maximum depends on loading, brakes and GCWR; no available towing computed. Numeric sleeping capacity is the exact model table value, not the family maximum. Convertible twins/sofa and power-lift garage beds are not dedicated standard bunks.30amp cord does not independently verify shore service. Solar panels, diesel generator, suspension upgrade and optional furniture are not assumed installed.25CO includes a rear gear garage for one e-bike; toy-hauler designation and garage length are not independently established.
Dealer pricing · USD
Dealer prices & price history
Advertised price history
Price history starts with our first observation. A trend will appear after more daily checks.
Dealer prices
No recently verified advertised prices for this model. This does not mean no dealers have it in stock.
About these prices
- New units only. Prices are advertised offers from a small sample of dealers, not an exhaustive nationwide search or an out-the-door quote. Options and equipment vary by unit.
- Listings are re-checked every 48 hours, and the lowest-priced unit is re-checked daily. Initial collection and source failures can delay updates.
- Price history observations begin when tracking starts; earlier discounts are not reconstructed. History includes listings that may no longer be available.
Payment calculator
Adjust price, down payment, rate and termTap to adjust—/moEnter a price to estimate a payment
- Amount financed
- —
- Total interest
- —
- Total of payments
- —
About this estimate
- An estimate for comparison only, not a loan offer. Your rate and term depend on credit, lender, down payment and the RV.
- Sales tax is applied to the price minus the trade-in value. Some states tax RVs differently.
- Tax and fees are added to the amount financed.
- Typical terms used: 10 years under $25,000 financed, 15 years up to $100,000 and 20 years above.
Motorhome
- Engine fuel type
- Diesel
- Chassis
- Mercedes-Benz 3500XD AWD dual wheel cutaway
- Engine
- Mercedes-Benz 2.0L I4 turbo diesel, 208 HP / 332 lb-ft
- GCWR
- 15,250 lb
- Published towing / receiver rating
- 5,000 lb
- Fuel tank capacity
- 25 gal
Dimensions & weights
- Exterior length
- 25′ 6″
- Exterior width
- 7′ 0″
- Exterior height
- 11′ 2″
- Shipping / unloaded weight
- Not verified
- GVWR
- 11,030 lb
- Listed cargo capacity
- Not verified
- Listed hitch weight
- Not verified
Living & sleeping
- Sleeping capacity
- 2
- Slide-outs
- 0

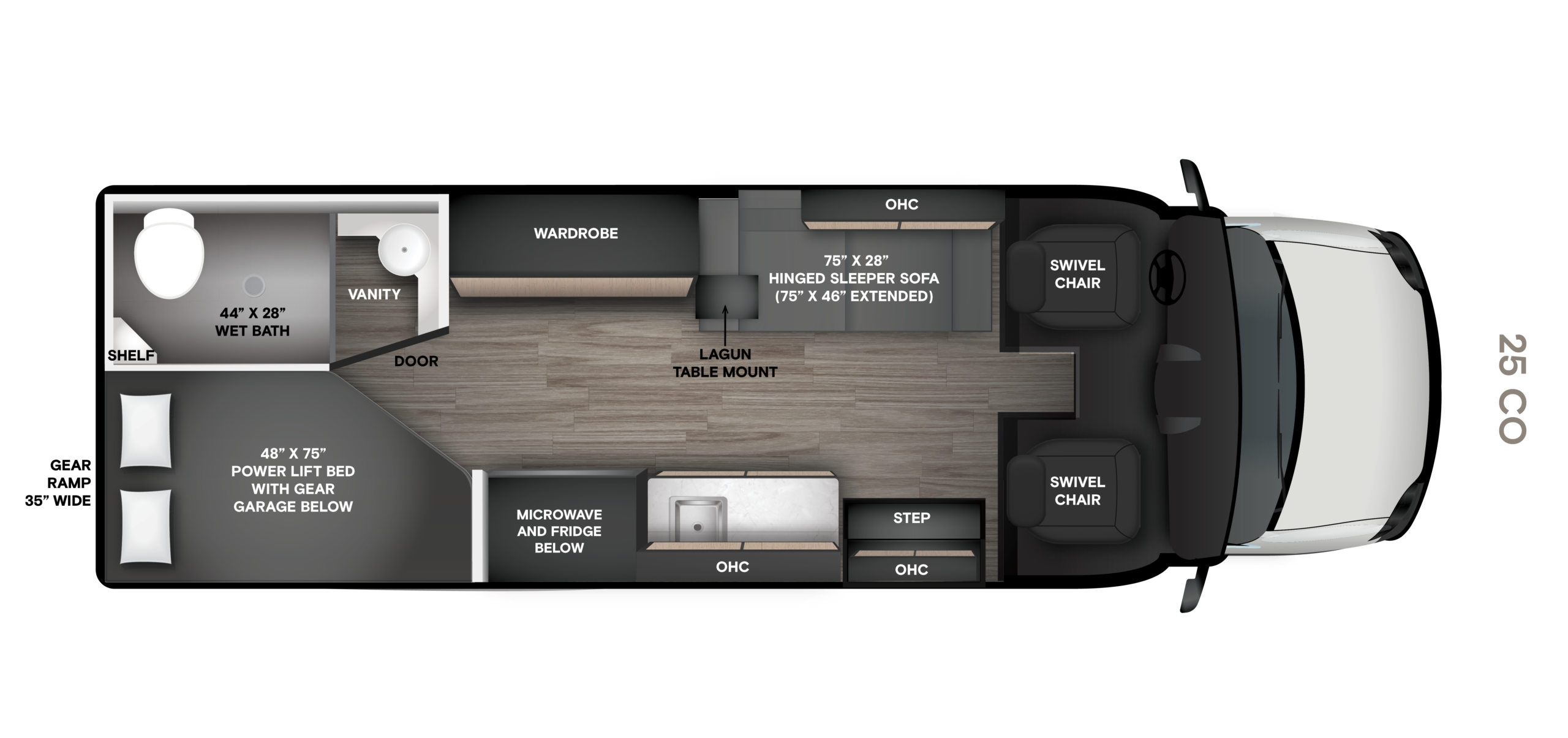

- Main bed
- Electric drop-down bed, 48 × 75 in, over gear garage
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Partial wet bath with separate vanity
- Refrigerator
- 7 cu ft refrigerator
Tanks & everyday features
- Fresh water
- 38 gal
- Gray water
- 48 gal
- Black water
- 5 gal
- Awning length
- Not verified
- Shore power / electrical service
- 30 amp power cord listed; service not verified
- Solar equipment
- Solar prep; two 200 W panels optional
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- Single-burner portable induction stove
- Air conditioning
- Not verified
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
Dimensions and capacities are approximate.4.5gal black capacity is a cassette toilet;24.5gal propulsion fuel excludes4.8gal DEF. Receiver5000lb maximum depends on loading, brakes and GCWR; no available towing computed. Numeric sleeping capacity is the exact model table value, not the family maximum. Convertible twins/sofa and power-lift garage beds are not dedicated standard bunks.30amp cord does not independently verify shore service. Solar panels, diesel generator, suspension upgrade and optional furniture are not assumed installed.25CO includes a rear gear garage for one e-bike; toy-hauler designation and garage length are not independently established.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
