2027 Tiffin GH1 SE 19SAV specs & floorplan
Class B · Diesel · 2027 model year
Explore the 2027 Tiffin GH1 SE 19SAV specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-27. View manufacturer specifications ↗
Manufacturer pricing
MSRP not verified
Price details
No model-specific price was found in the manufacturer information checked.
Price source checked .
Prices are not estimated from other models, model years or dealer asking prices.

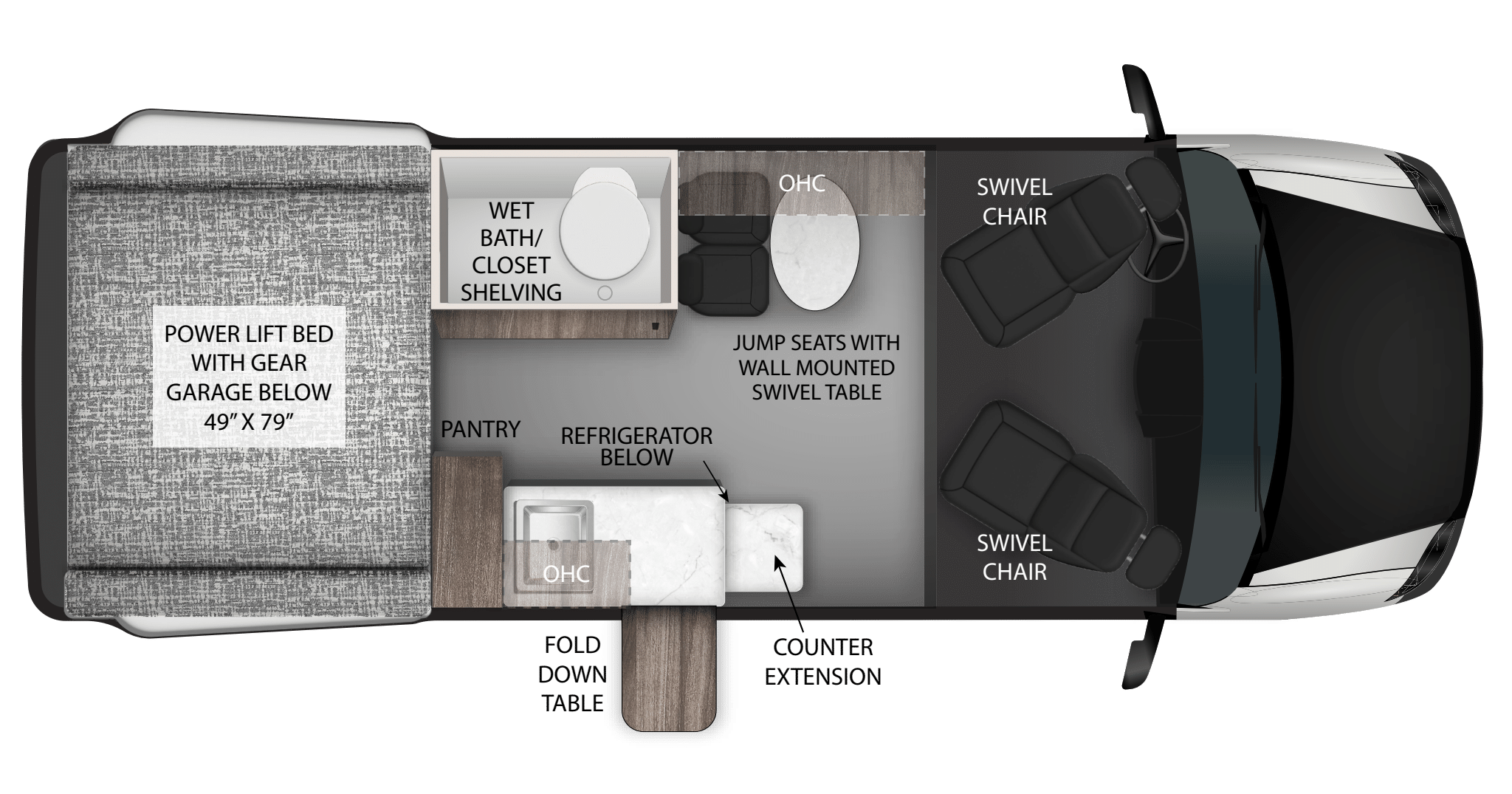

© Tiffin Motorhomes. Illustration may show optional equipment.
At a glance
- Engine fuel type
- Diesel
- Exterior length
- 19′ 6″
- GVWR
- 9,050 lb
Weight basis: Manufacturer specification.
Published GH1 family sleeping capacity is2–3; an individual floorplan capacity is not verified. Toilet capacity refers to a cassette;19FV includes a portable cassette toilet. Receiver towing ratings depend on loading and configuration. Unpublished unloaded weight, cargo capacity, slide count and awning length remain unknown. Power lift main bed with gear storage below; convertible or lift beds do not establish dedicated bunks.
Dealer pricing · USD
Dealer prices & price history
Advertised price history
Price history starts with our first observation. A trend will appear after more daily checks.
Dealer prices
No recently verified advertised prices for this model. This does not mean no dealers have it in stock.
About these prices
- New units only. Prices are advertised offers from a small sample of dealers, not an exhaustive nationwide search or an out-the-door quote. Options and equipment vary by unit.
- Listings are re-checked every 48 hours, and the lowest-priced unit is re-checked daily. Initial collection and source failures can delay updates.
- Price history observations begin when tracking starts; earlier discounts are not reconstructed. History includes listings that may no longer be available.
Payment calculator
Adjust price, down payment, rate and termTap to adjust—/moEnter a price to estimate a payment
- Amount financed
- —
- Total interest
- —
- Total of payments
- —
About this estimate
- An estimate for comparison only, not a loan offer. Your rate and term depend on credit, lender, down payment and the RV.
- Sales tax is applied to the price minus the trade-in value. Some states tax RVs differently.
- Tax and fees are added to the amount financed.
- Typical terms used: 10 years under $25,000 financed, 15 years up to $100,000 and 20 years above.
Motorhome
- Engine fuel type
- Diesel
- Chassis
- Mercedes-Benz 2500 Sprinter Cargo Van; AWD
- Engine
- Mercedes-Benz 2.0L4-cylinder twin-scroll turbo diesel;208HP/332lb-ft
- GCWR
- 13,930 lb
- Published towing / receiver rating
- 5,000 lb
- Fuel tank capacity
- 25 gal
Dimensions & weights
- Exterior length
- 19′ 6″
- Exterior width
- 7′ 8″
- Exterior height
- 10′ 0″
- Shipping / unloaded weight
- Not verified
- GVWR
- 9,050 lb
- Listed cargo capacity
- Not verified
- Listed hitch weight
- Not verified
Living & sleeping
- Sleeping capacity
- Not verified
- Slide-outs
- Not verified
- Main bed
- 49 ×79in power lift bed with gear garage below
- Bunk beds
- Not verified
- Dinette
- Two jump seats with wall-mounted swivel table
- Bathroom
- 24 ×36in wet bath with cassette toilet
- Refrigerator
- 12V 3.1 cu ft refrigerator with freezer
Tanks & everyday features
- Fresh water
- 26 gal
- Gray water
- 22 gal
- Black water
- 5 gal
- Awning length
- Not verified
- Shore power / electrical service
- 30 amp cord listed; service not verified
- Solar equipment
- 220 W standard
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- Not listed
- Cooktop
- Portable single-burner Nuwave induction cooktop
- Air conditioning
- 15,000 BTU Gree A/C with heat pump
- Electric fireplace
- Not verified
- Backup camera
- true
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
Published GH1 family sleeping capacity is2–3; an individual floorplan capacity is not verified. Toilet capacity refers to a cassette;19FV includes a portable cassette toilet. Receiver towing ratings depend on loading and configuration. Unpublished unloaded weight, cargo capacity, slide count and awning length remain unknown. Power lift main bed with gear storage below; convertible or lift beds do not establish dedicated bunks.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
