2027 Winnebago ARKA 20Z specs & floorplan
Class C · Diesel · 2027 model year
Explore the 2027 Winnebago ARKA 20Z specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-27. View manufacturer specifications ↗
Manufacturer pricing
Manufacturer fully equipped price
$331,901
Price details
Manufacturer advertised fully equipped price for the displayed 20Z configuration in USD. Not a base MSRP or out-the-door total; equipment/package choices, taxes, title, license and delivery can change the amount. Listed optional features are not assumed standard.
Price source checked · View manufacturer pricing.
This is a manufacturer reference price, not a dealer sale price or an out-the-door quote.
© Winnebago. Illustration may show optional equipment.
At a glance
- Engine fuel type
- Diesel
- Exterior length
- 26′ 7″
- GVWR
- 19,500 lb
Weight basis: Unloaded vehicle weight not published.
Height is not verified: the current model page lists 11 ft 9 in while the 2027 operator manual lists 11 ft 11 in. Published sleeping maximum of four depends on configuration. Cabover sleeping, microwave, A/C and the 10 ft awning are optional; the standard cabover module is storage. Solar, battery and tire equipment depend on the package. Toilet capacity refers to a 4.75 gal cassette. The 30 amp cord does not independently establish shore service. Manufacturer fully equipped price describes the advertised configuration, not a base MSRP or out-the-door total. Towing depends on loading, brakes and combined ratings. Gear storage does not establish a toy-hauler type or garage length.
Dealer pricing · USD
Dealer prices & price history
Advertised price history
Price history starts with our first observation. A trend will appear after more daily checks.
Dealer prices
No recently verified advertised prices for this model. This does not mean no dealers have it in stock.
About these prices
- New units only. Prices are advertised offers from a small sample of dealers, not an exhaustive nationwide search or an out-the-door quote. Options and equipment vary by unit.
- Listings are re-checked every 48 hours, and the lowest-priced unit is re-checked daily. Initial collection and source failures can delay updates.
- Price history observations begin when tracking starts; earlier discounts are not reconstructed. History includes listings that may no longer be available.
Payment calculator
Adjust price, down payment, rate and termTap to adjust$2,686/mo20 years at 8.99% APR
- Amount financed
- $298,711
- Total interest
- $345,847
- Total of payments
- $644,558
About this estimate
- An estimate for comparison only, not a loan offer. Your rate and term depend on credit, lender, down payment and the RV.
- Starts from the manufacturer price.
- Sales tax is applied to the price minus the trade-in value. Some states tax RVs differently.
- Tax and fees are added to the amount financed.
- Typical terms used: 10 years under $25,000 financed, 15 years up to $100,000 and 20 years above.
Motorhome
- Engine fuel type
- Diesel
- Chassis
- RAM 5500 4x4 crew cab
- Engine
- 6.7L I-6 diesel; 8-speed automatic
- GCWR
- 43,000 lb
- Published towing / receiver rating
- 15,000 lb
- Fuel tank capacity
- 52 gal
Dimensions & weights
- Exterior length
- 26′ 7″
- Exterior width
- 8′ 0″
- Exterior height
- Conflicting data
- Shipping / unloaded weight
- Not verified
- GVWR
- 19,500 lb
- Listed cargo capacity
- Not verified
- Listed hitch weight
- Not verified

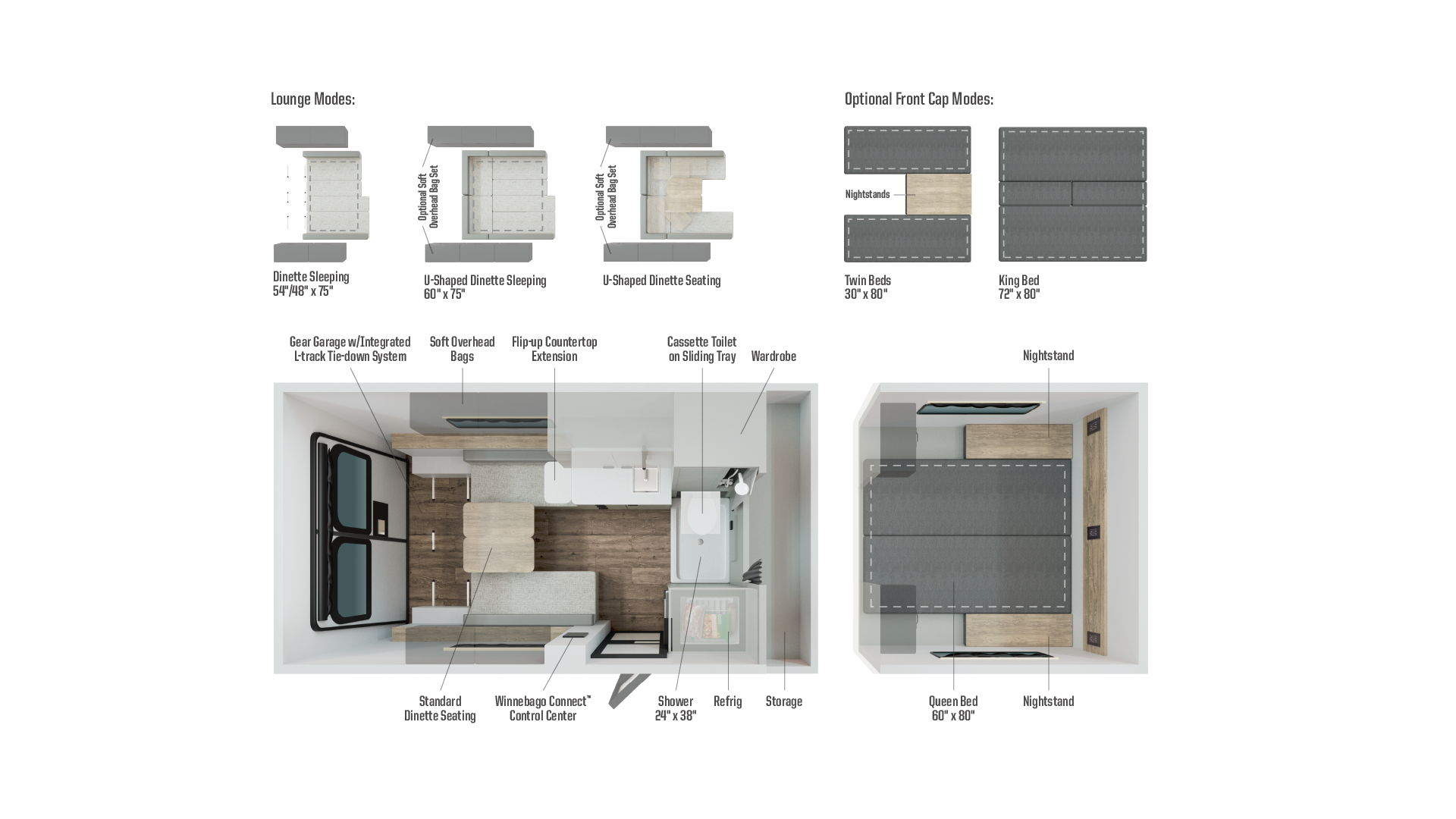

Living & sleeping
- Sleeping capacity
- Not verified
- Slide-outs
- Not verified
- Main bed
- Rear convertible dinette; optional cabover sleeping module with twin/queen/king configurations
- Bunk beds
- Optional
- Dinette
- Standard side-to-side dinette; U-shaped module optional
- Bathroom
- 24 × 38 in shower with folding seat, retractable privacy screen and cassette toilet on sliding tray
- Refrigerator
- Norcold 6.2 cu ft two-door 12V refrigerator with drawer freezer
Tanks & everyday features
- Fresh water
- 60 gal
- Gray water
- 40 gal
- Black water
- 5 gal
- Awning length
- Optional
- Shore power / electrical service
- 30 amp cord listed; service not verified
- Solar equipment
- Not verified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- Optional
- Cooktop
- NuWave 1,400 W portable induction cooktop
- Air conditioning
- Optional
- Electric fireplace
- Not verified
- Backup camera
- true
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
Height is not verified: the current model page lists 11 ft 9 in while the 2027 operator manual lists 11 ft 11 in. Published sleeping maximum of four depends on configuration. Cabover sleeping, microwave, A/C and the 10 ft awning are optional; the standard cabover module is storage. Solar, battery and tire equipment depend on the package. Toilet capacity refers to a 4.75 gal cassette. The 30 amp cord does not independently establish shore service. Manufacturer fully equipped price describes the advertised configuration, not a base MSRP or out-the-door total. Towing depends on loading, brakes and combined ratings. Gear storage does not establish a toy-hauler type or garage length.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
