Travel trailer · 2027 model year

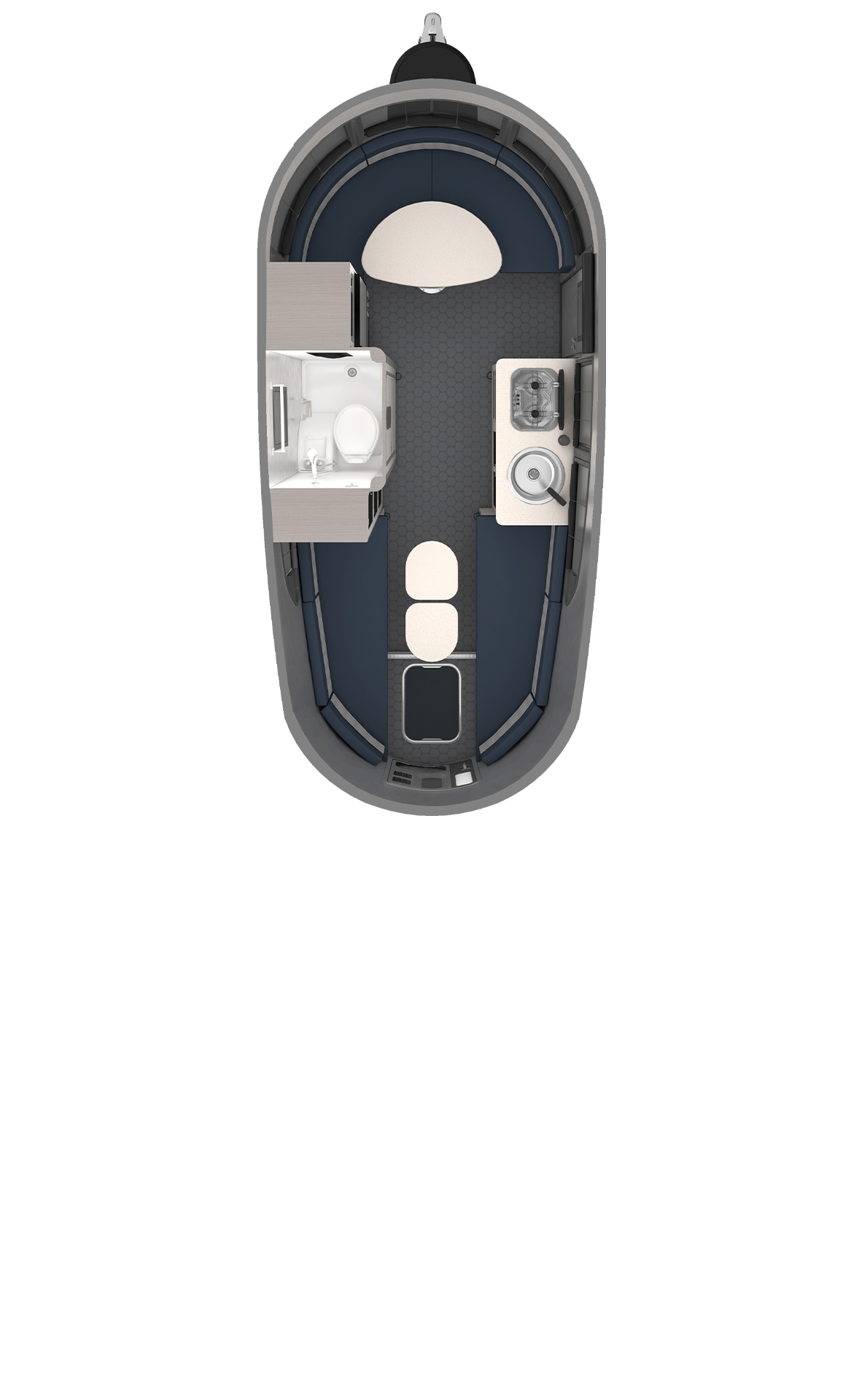

2027 Airstream Basecamp 20X specs & floorplan
Explore the 2027 Airstream Basecamp 20X specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-21. View manufacturer specifications ↗
© Airstream, Inc.. Illustration may show optional equipment.
At a glance
- Exterior length
- 20′ 2″
- Unloaded weight
- 3,500 lb
- GVWR
- 4,300 lb
- Sleeps
- 4
Weight basis: Manufacturer unit base weight.
Dimensions & weights
- Exterior length
- 20′ 2″
- Exterior width
- 7′ 10″
- Exterior height
- 9′ 5″
- Shipping / unloaded weight
- 3,500 lb
- GVWR
- 4,300 lb
- Listed cargo capacity
- 800 lb
- Listed hitch weight
- 535 lb
Living & sleeping
- Sleeping capacity
- 4
- Slide-outs
- Not verified
- Main bed
- Convertible Bench Seating and Sleep Space 82 in. x 78 in.
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Space-Saving Wet Bath
- Refrigerator
- 4.3 cu ft (12 V)
Tanks & everyday features
- Fresh water
- 23 gal
- Gray water
- 28 gal
- Black water
- 21 gal
- Awning length
- Not verified
- Shore power / electrical service
- 30 amp standard
- Solar equipment
- Not verified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- Not verified
- Cooktop
- Stainless Steel LP Gas Stove with Hinged Glass Lid (2 Burners)
- Air conditioning
- Not verified
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
