Travel trailer · 2027 model year
2027 Grand Design Imagine AIM 21MBA specs & floorplan
Explore the 2027 Grand Design Imagine AIM 21MBA specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗

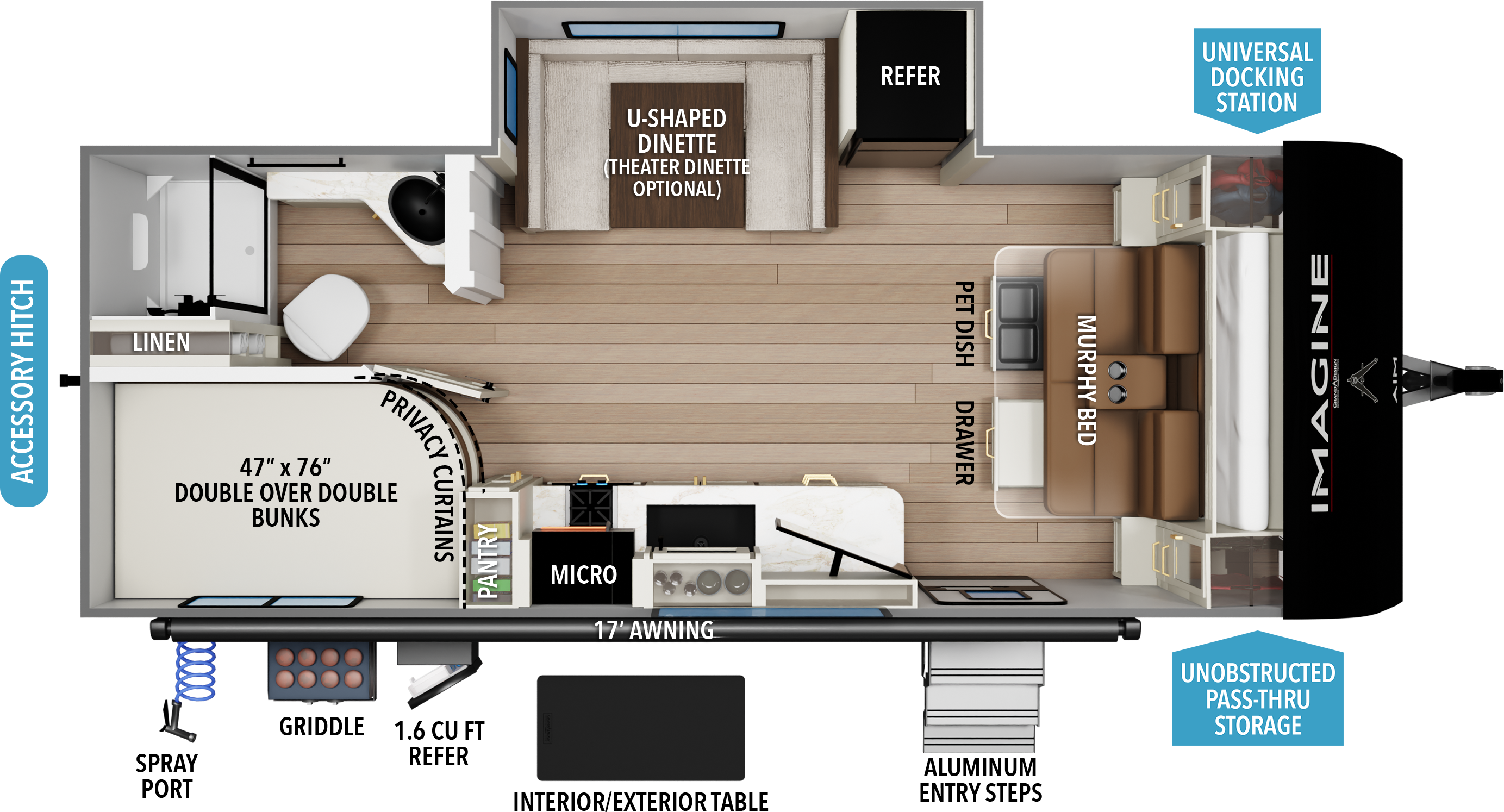

© Grand Design RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 24′ 11″
- Unloaded weight
- 5,361 lb
- GVWR
- 6,395 lb
- Sleeps
- 5
Weight basis: Manufacturer unloaded vehicle weight.
Dimensions & weights
- Exterior length
- 24′ 11″
- Exterior width
- 8′ 0″
- Exterior height
- 10′ 10″
- Shipping / unloaded weight
- 5,361 lb
- GVWR
- 6,395 lb
- Listed cargo capacity
- Not verified
- Listed hitch weight
- 560 lb
Living & sleeping
- Sleeping capacity
- 5
- Slide-outs
- 1
- Main bed
- 60 X 78 Hinged Bed
- Bunk beds
- ✓ Yes
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- 10 cu. ft. (power type not verified)
Tanks & everyday features
- Fresh water
- 37 gal
- Gray water
- 45 gal
- Black water
- 37 gal
- Awning length
- Not verified
- Shore power / electrical service
- 30 amp standard
- Solar equipment
- Not verified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- Not verified
- Cooktop
- Not verified
- Air conditioning
- 13,500 BTU A/C
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- 2
- Tire size
- ST215/75R14LRD
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
