Travel trailer · 2027 model year

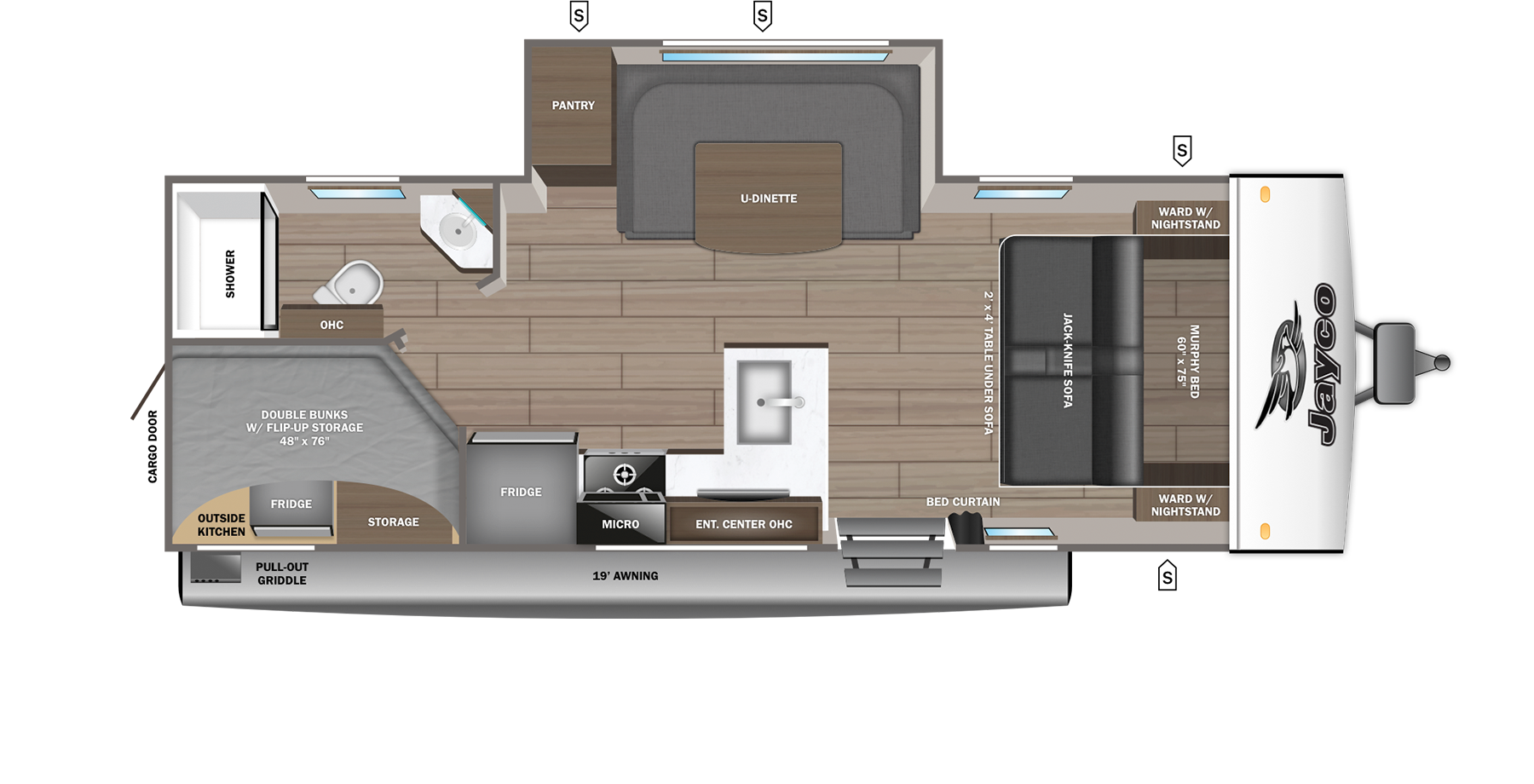

2027 Jayco Jay Feather 21MBH specs & floorplan
Explore the 2027 Jayco Jay Feather 21MBH specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗
© Jayco, Inc.. Illustration may show optional equipment.
At a glance
- Exterior length
- 26′ 8″
- Unloaded weight
- 5,510 lb
- GVWR
- 6,995 lb
- Sleeps
- 6
Weight basis: Manufacturer unloaded vehicle weight.
Dimensions & weights
- Exterior length
- 26′ 8″
- Exterior width
- 8′ 0″
- Exterior height
- 10′ 8″
- Shipping / unloaded weight
- 5,510 lb
- GVWR
- 6,995 lb
- Listed cargo capacity
- 1,485 lb
- Listed hitch weight
- 625 lb
Living & sleeping
- Sleeping capacity
- 6
- Slide-outs
- Not verified
- Main bed
- Not verified
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- 11 cu. ft. 12V refrigerator
Tanks & everyday features
- Fresh water
- 55 gal
- Gray water
- 31 gal
- Black water
- 31 gal
- Awning length
- 19′ 0″
- Shore power / electrical service
- Not verified
- Solar equipment
- Not verified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- Not verified
- Cooktop
- Not verified
- Air conditioning
- 13,500 BTU ducted roof-mounted Quiet Series A/C
- Electric fireplace
- Not verified
- Backup camera
- Camera prep (camera not included)
- Propane tanks
- Not verified
- Tire size
- ST205/75R14'D'
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
