Travel trailer · 2027 model year

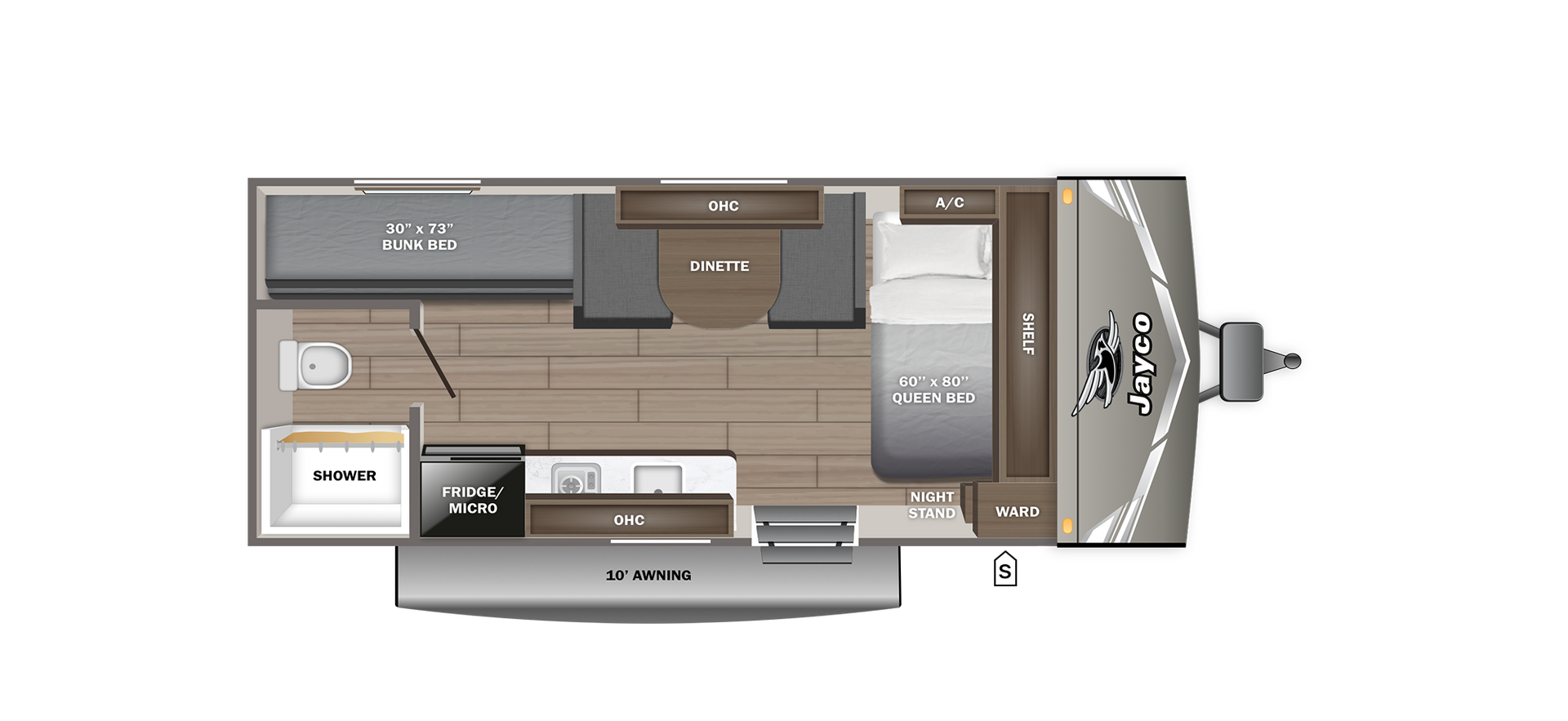

2027 Jayco Jay Flight 170BH - Sport Edition specs & floorplan
Explore the 2027 Jayco Jay Flight 170BH - Sport Edition specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗
© Jayco, Inc.. Illustration may show optional equipment.
At a glance
- Exterior length
- 21′ 3″
- Unloaded weight
- 3,000 lb
- GVWR
- 3,750 lb
- Sleeps
- 6
Weight basis: Manufacturer unloaded vehicle weight.
Dimensions & weights
- Exterior length
- 21′ 3″
- Exterior width
- 8′ 0″
- Exterior height
- 9′ 5″
- Shipping / unloaded weight
- 3,000 lb
- GVWR
- 3,750 lb
- Listed cargo capacity
- 750 lb
- Listed hitch weight
- 325 lb
Living & sleeping
- Sleeping capacity
- 6
- Slide-outs
- Not verified
- Main bed
- 60 × 80 in. queen bed
- Bunk beds
- ✓ Yes
- Dinette
- Booth dinette
- Bathroom
- Rear bathroom with shower and toilet
- Refrigerator
- 12V refrigerator (capacity not published)
Tanks & everyday features
- Fresh water
- 30 gal
- Gray water
- 20 gal
- Black water
- 20 gal
- Awning length
- 10′ 0″
- Shore power / electrical service
- Not verified
- Solar equipment
- Not verified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- 2-burner cooktop
- Air conditioning
- 8,000 BTU wall-mounted A/C
- Electric fireplace
- Not listed
- Backup camera
- Not listed
- Propane tanks
- 1
- Tire size
- ST205/75R14'D'
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
