Travel trailer · 2027 model year
2027 Jayco Jay Flight 290RLS specs & floorplan
Explore the 2027 Jayco Jay Flight 290RLS specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗

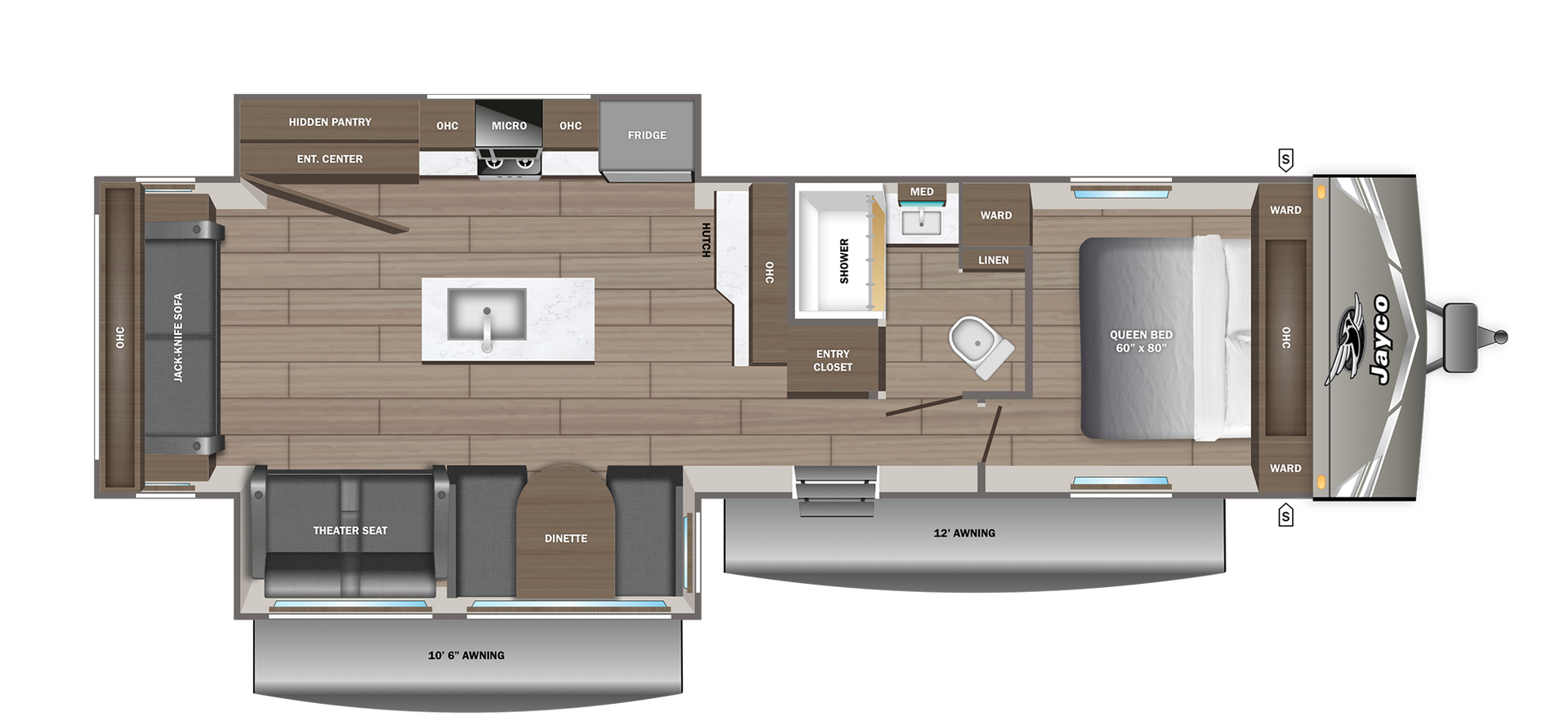

© Jayco, Inc.. Illustration may show optional equipment.
At a glance
- Exterior length
- 34′ 9″
- Unloaded weight
- 7,575 lb
- GVWR
- 9,600 lb
- Sleeps
- 6
Weight basis: Manufacturer unloaded vehicle weight.
Dimensions & weights
- Exterior length
- 34′ 9″
- Exterior width
- 8′ 0″
- Exterior height
- 11′ 2″
- Shipping / unloaded weight
- 7,575 lb
- GVWR
- 9,600 lb
- Listed cargo capacity
- 2,025 lb
- Listed hitch weight
- 710 lb
Living & sleeping
- Sleeping capacity
- 6
- Slide-outs
- Not verified
- Main bed
- Not verified
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- 11 cu. ft. 12V refrigerator
Tanks & everyday features
- Fresh water
- 52 gal
- Gray water
- 39 gal
- Black water
- 39 gal
- Awning length
- 12′ 0″
- Shore power / electrical service
- 50 amp optional; standard service not verified
- Solar equipment
- Not verified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- Not verified
- Air conditioning
- Not verified
- Electric fireplace
- Not verified
- Backup camera
- Camera prep (camera not included)
- Propane tanks
- Not verified
- Tire size
- ST225/75R15'E'
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
