Travel trailer · 2027 model year

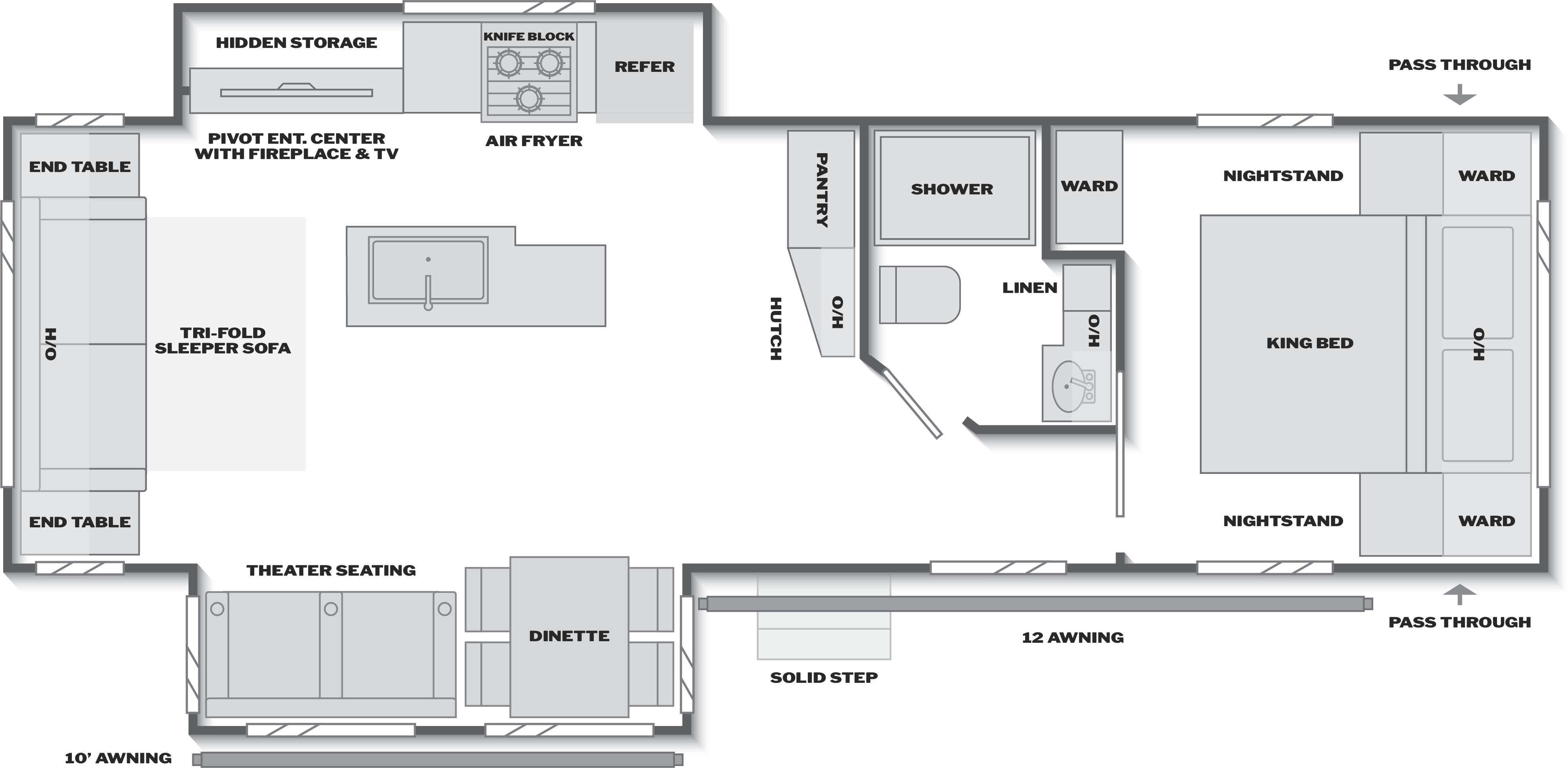

2027 Keystone Coleman Legacy 2950RL specs & floorplan
Explore the 2027 Keystone Coleman Legacy 2950RL specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗
© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 33′ 11″
- Unloaded weight
- 7,235 lb
- Sleeps
- 4
Weight basis: Manufacturer shipping weight.
Dimensions & weights
- Exterior length
- 33′ 11″
- Exterior width
- Not verified
- Exterior height
- 11′ 1″
- Shipping / unloaded weight
- 7,235 lb
- GVWR
- Not verified
- Listed cargo capacity
- 2,265 lb
- Listed hitch weight
- 905 lb
Living & sleeping
- Sleeping capacity
- 4
- Slide-outs
- Not verified
- Main bed
- 70x80 king bed with versatile underbed storage
- Bunk beds
- No
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- 16 cubic foot 12V refrigerator
Tanks & everyday features
- Fresh water
- 54 gal
- Gray water
- 68 gal
- Black water
- 34 gal
- Awning length
- Not verified
- Shore power / electrical service
- Not verified
- Solar equipment
- SolarFlex™ Protect 220
- Outdoor kitchen
- No
- Washer/dryer prep
- No
- Microwave
- ✓ Yes
- Cooktop
- 3-burner flush mount gas range with glass cover
- Air conditioning
- 18,000 BTU CHILL CUBE A/C
- Electric fireplace
- ✓ Yes
- Backup camera
- Camera prep (Furrion; camera not included)
- Propane tanks
- 2
- Tire size
- ST225/75R15D
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
How does the 2950RL compare?
Add another RV to see the floorplans and specifications side by side.
