Travel trailer · 2027 model year
2027 Keystone Cougar Western Elevation 26LBWE specs & floorplan
Explore the 2027 Keystone Cougar Western Elevation 26LBWE specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗

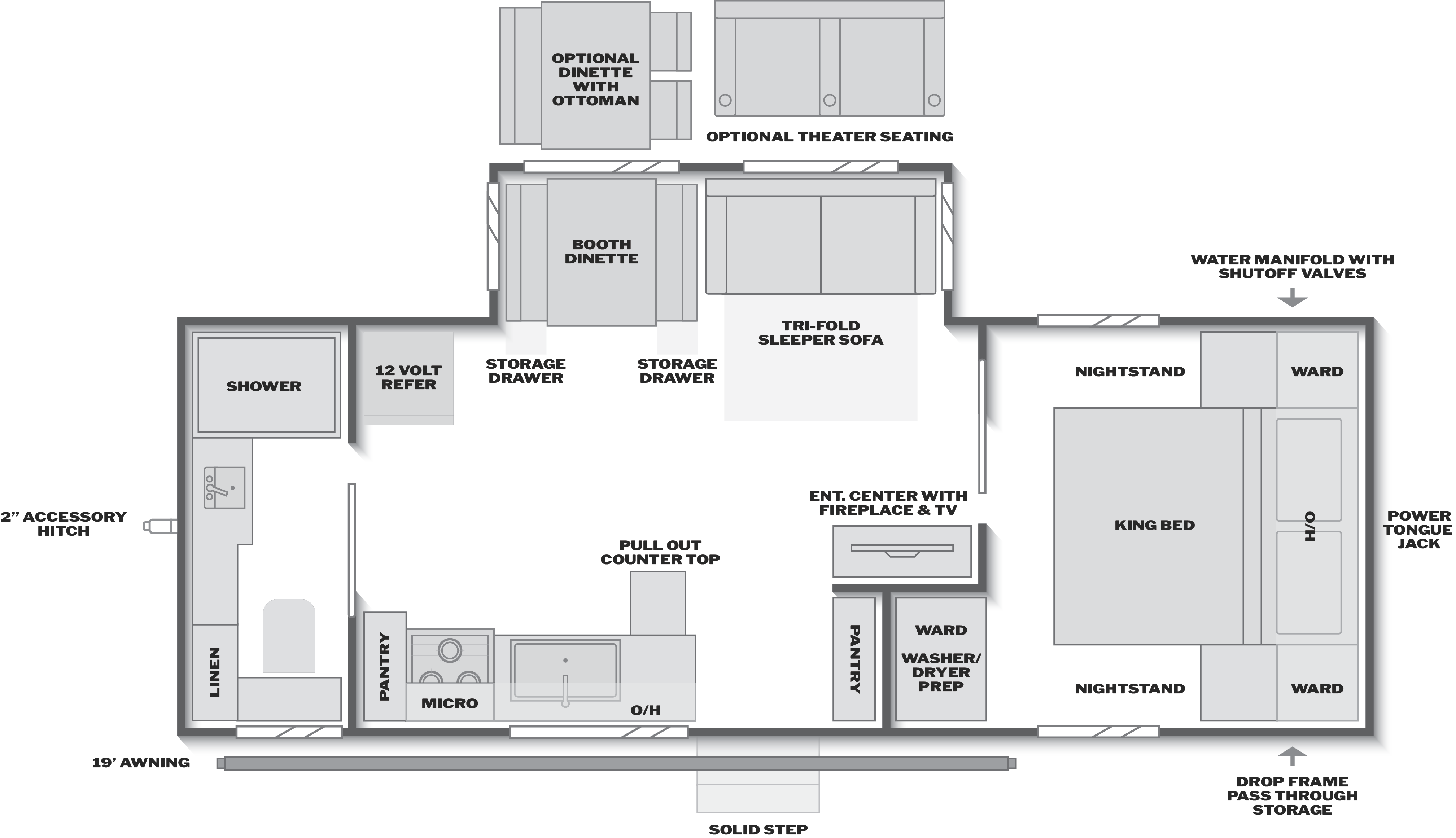

© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 30′ 10″
- Unloaded weight
- 7,650 lb
- Sleeps
- 6
Weight basis: Manufacturer shipping weight.
Dimensions & weights
- Exterior length
- 30′ 10″
- Exterior width
- Not verified
- Exterior height
- 11′ 5″
- Shipping / unloaded weight
- 7,650 lb
- GVWR
- Not verified
- Listed cargo capacity
- 2,100 lb
- Listed hitch weight
- 980 lb
Living & sleeping
- Sleeping capacity
- 6
- Slide-outs
- Not verified
- Main bed
- 70" x 80" king bed w/ underbed storage
- Bunk beds
- No
- Dinette
- Not verified
- Bathroom
- Rear bathroom (fixtures not verified)
- Refrigerator
- 10.6 cu. Ft. 12V Furrion Refrigerator
Tanks & everyday features
- Fresh water
- 81 gal
- Gray water
- 80 gal
- Black water
- 40 gal
- Awning length
- Not verified
- Shore power / electrical service
- 50 amp standard
- Solar equipment
- SolarFlex™ Protect 220
- Outdoor kitchen
- No
- Washer/dryer prep
- ✓ Yes
- Microwave
- ✓ Yes
- Cooktop
- 17" Furrion® range w/ Piezo ignition and glass stovetop cover
- Air conditioning
- Furrion Quick Cool 15,000 BTU Ducted A/C
- Electric fireplace
- ✓ Yes
- Backup camera
- Not verified
- Propane tanks
- 2
- Tire size
- ST235/75R15D
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
