Travel trailer · 2027 model year

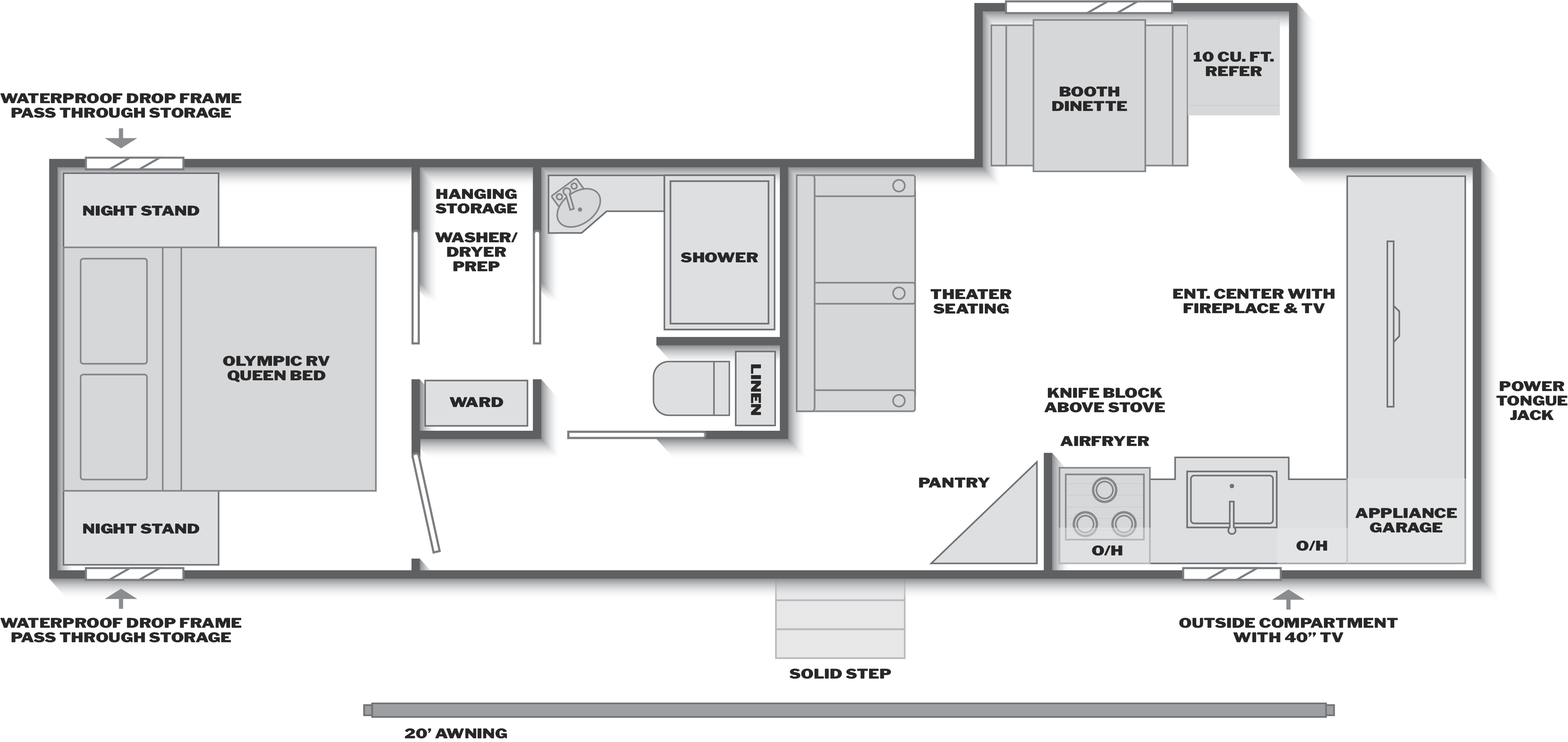

2027 Keystone Hideout MAX 29HAVEN specs & floorplan
Explore the 2027 Keystone Hideout MAX 29HAVEN specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗
© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 33′ 11″
- Unloaded weight
- 7,340 lb
- Sleeps
- 3
Weight basis: Manufacturer shipping weight.
Dimensions & weights
- Exterior length
- 33′ 11″
- Exterior width
- Not verified
- Exterior height
- 11′ 3″
- Shipping / unloaded weight
- 7,340 lb
- GVWR
- Not verified
- Listed cargo capacity
- 2,160 lb
- Listed hitch weight
- 1,055 lb
Living & sleeping
- Sleeping capacity
- 3
- Slide-outs
- Not verified
- Main bed
- Olympic queen bed (66" x 80")
- Bunk beds
- No
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- 10 cu. ft. 12V refrigerator
Tanks & everyday features
- Fresh water
- 54 gal
- Gray water
- 78 gal
- Black water
- 30 gal
- Awning length
- Not verified
- Shore power / electrical service
- Conflicting data
- Solar equipment
- SolarFlex™ ready solar prep
- Outdoor kitchen
- No
- Washer/dryer prep
- ✓ Yes
- Microwave
- ✓ Yes
- Cooktop
- Not verified
- Air conditioning
- 18,000 BTU Chill Cube A/C + 2nd 8,000 BTU bedroom A/C
- Electric fireplace
- ✓ Yes
- Backup camera
- Camera prep (Furrion; camera not included)
- Propane tanks
- 2
- Tire size
- ST225/75R15D
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
