Travel trailer · 2027 model year

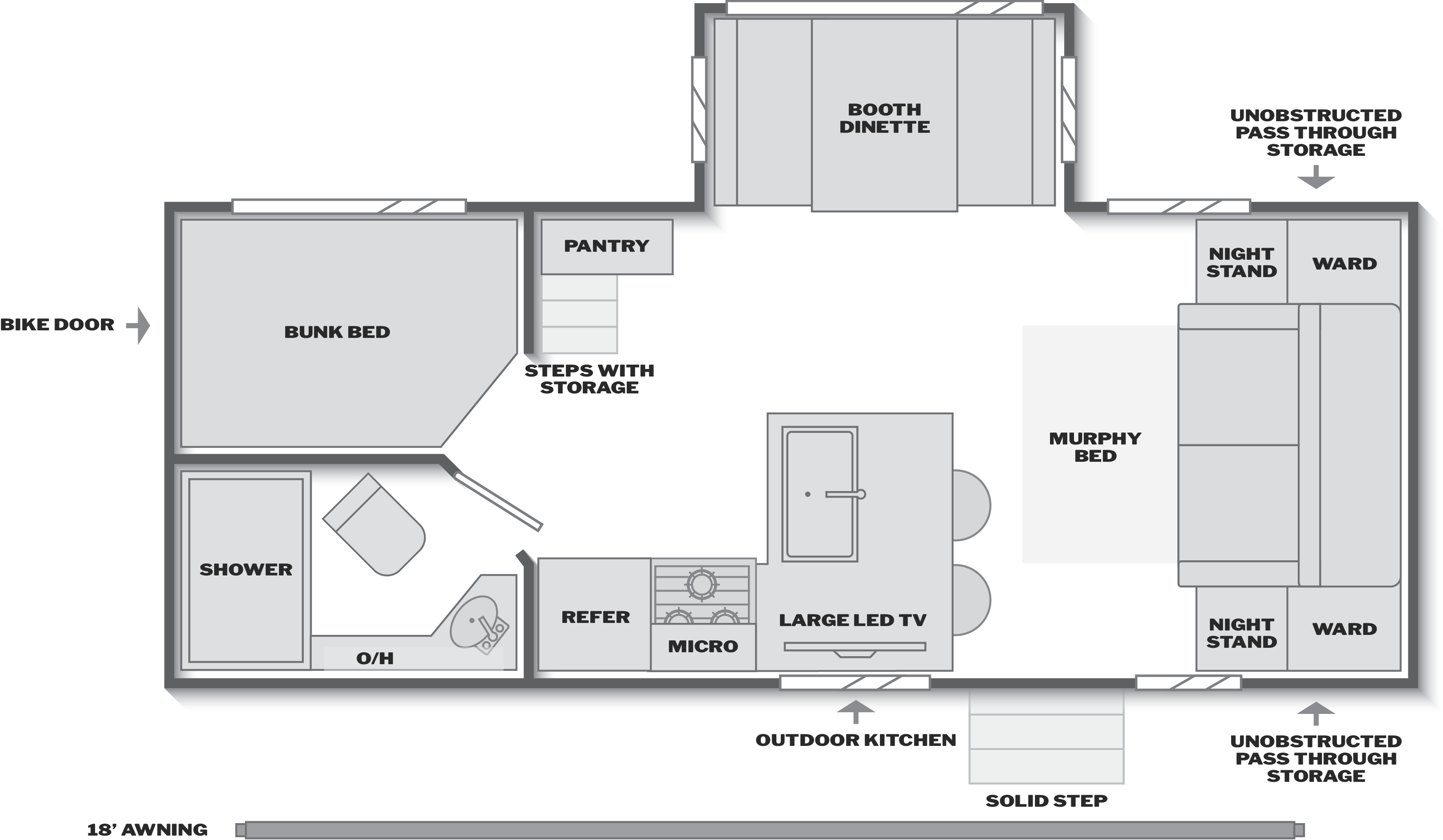

2027 Keystone Passport Super Lite 2220BH specs & floorplan
Explore the 2027 Keystone Passport Super Lite 2220BH specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗
© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 26′ 3″
- Unloaded weight
- 5,550 lb
- Sleeps
- 8
Weight basis: Manufacturer shipping weight.
Dimensions & weights
- Exterior length
- 26′ 3″
- Exterior width
- Not verified
- Exterior height
- 11′ 1″
- Shipping / unloaded weight
- 5,550 lb
- GVWR
- Not verified
- Listed cargo capacity
- 2,050 lb
- Listed hitch weight
- 660 lb
Living & sleeping
- Sleeping capacity
- 8
- Slide-outs
- Not verified
- Main bed
- Custom 66"x80" King Bed
- Bunk beds
- ✓ Yes
- Dinette
- Not verified
- Bathroom
- Rear bathroom (fixtures not verified)
- Refrigerator
- 10 cu ft (power type not verified)
Tanks & everyday features
- Fresh water
- 54 gal
- Gray water
- 38 gal
- Black water
- 38 gal
- Awning length
- Not verified
- Shore power / electrical service
- Not verified
- Solar equipment
- SolarFlex™ Protect 220
- Outdoor kitchen
- ✓ Yes
- Washer/dryer prep
- No
- Microwave
- ✓ Yes
- Cooktop
- 3-Burner, high output range w/ glass-top & oven
- Air conditioning
- 18K Furrion Chill Cube A/C
- Electric fireplace
- No
- Backup camera
- Not verified
- Propane tanks
- 2
- Tire size
- ST215/75R14D
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
