Travel trailer · 2027 model year
2027 Keystone Springdale 2100RLWE specs & floorplan
Explore the 2027 Keystone Springdale 2100RLWE specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗

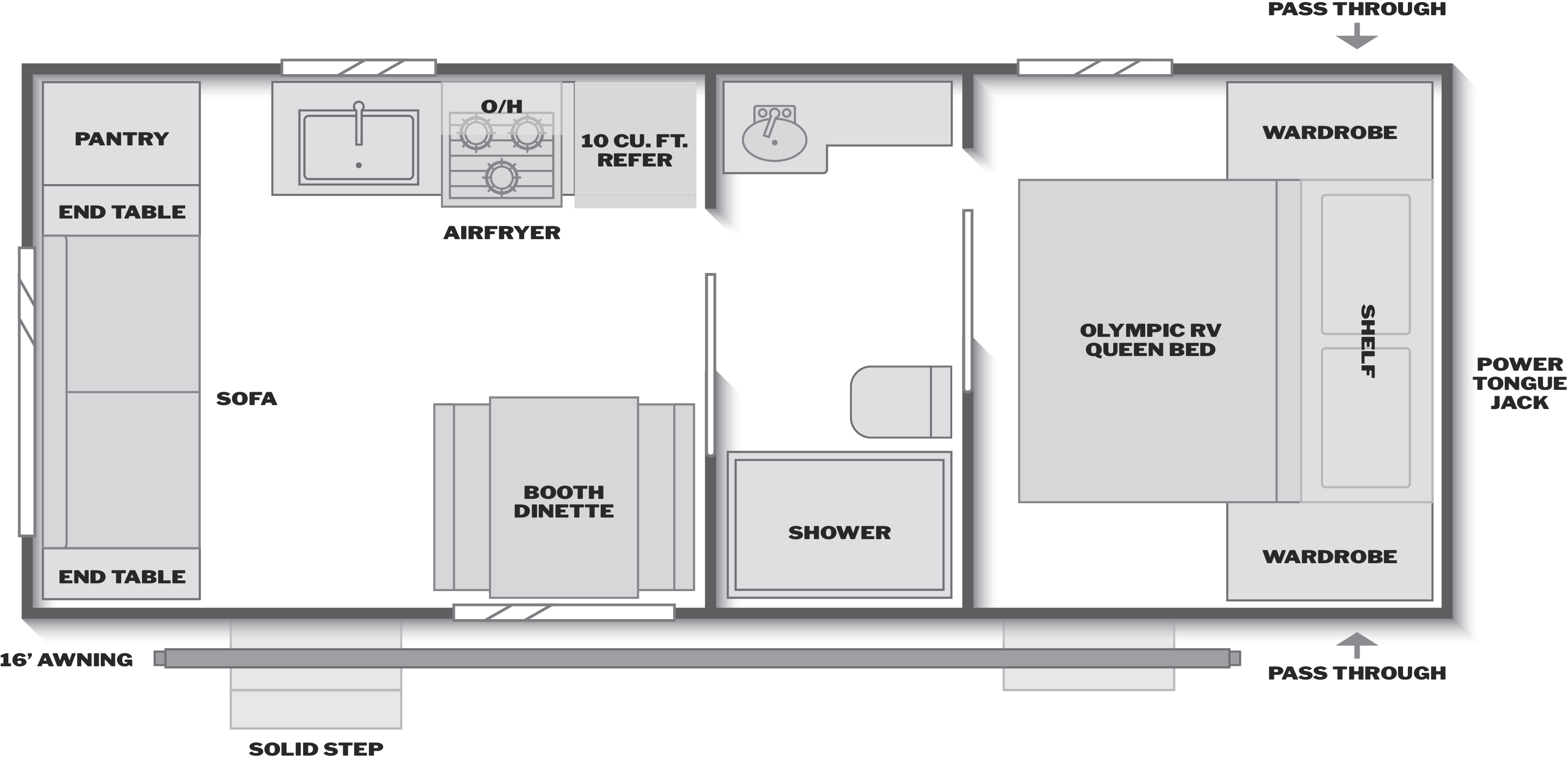

© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 25′ 5″
- Unloaded weight
- 4,700 lb
- Sleeps
- 4
Weight basis: Manufacturer shipping weight.
Dimensions & weights
- Exterior length
- 25′ 5″
- Exterior width
- Not verified
- Exterior height
- 11′ 3″
- Shipping / unloaded weight
- 4,700 lb
- GVWR
- Not verified
- Listed cargo capacity
- 2,800 lb
- Listed hitch weight
- 680 lb
Living & sleeping
- Sleeping capacity
- 4
- Slide-outs
- Not verified
- Main bed
- Olympic RV queen bed
- Bunk beds
- No
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- 10 cu. ft. 12V refrigerator
Tanks & everyday features
- Fresh water
- 82 gal
- Gray water
- 34 gal
- Black water
- 34 gal
- Awning length
- Not verified
- Shore power / electrical service
- 30 amp standard
- Solar equipment
- SolarFlex™ ready solar prep
- Outdoor kitchen
- No
- Washer/dryer prep
- No
- Microwave
- ✓ Yes
- Cooktop
- Not verified
- Air conditioning
- 15,000 BTU A/C
- Electric fireplace
- No
- Backup camera
- Camera prep (Furrion; camera not included)
- Propane tanks
- 2
- Tire size
- ST215/75R14D
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
