Travel trailer · 2027 model year

2027 Keystone Springdale MAX 3100XBR specs & floorplan

Explore the 2027 Keystone Springdale MAX 3100XBR specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.

Compare this to other models →

Source checked 2026-10-19. View manufacturer specifications ↗

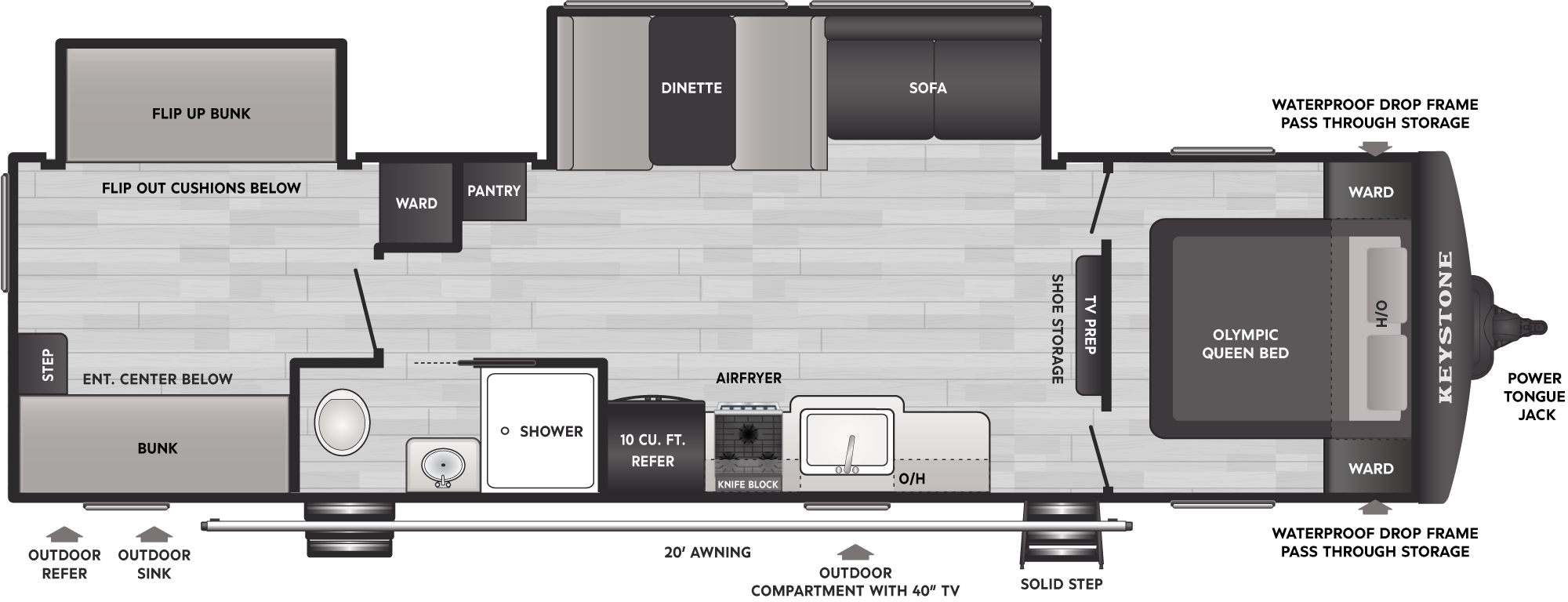

2027 Keystone Springdale MAX 3100XBR manufacturer floorplan · click to enlarge
© Keystone RV. Illustration may show optional equipment.

At a glance

Exterior length: 35′ 11″
Unloaded weight: 8,280 lb
Sleeps: 8

Weight basis: Manufacturer shipping weight.

Dimensions & weights

Exterior length: 35′ 11″
Exterior width: Not verified
Exterior height: 11′ 3″
Shipping / unloaded weight: 8,280 lb
GVWR: Not verified
Listed cargo capacity: 2,875 lb
Listed hitch weight: 965 lb

Living & sleeping

Sleeping capacity: 8
Slide-outs: Not verified
Main bed: Olympic queen bed (66" x 80")
Bunk beds: ✓ Yes
Dinette: Not verified
Bathroom: Not verified
Refrigerator: Outside kitchen w/ full sink and refrigerator

Tanks & everyday features

Fresh water: 54 gal
Gray water: 39 gal
Black water: 39 gal
Awning length: Not verified
Shore power / electrical service: 30 amp standard; 50 amp optional
Solar equipment: SolarFlex™ ready solar prep
Outdoor kitchen: ✓ Yes
Washer/dryer prep: No
Microwave: ✓ Yes
Cooktop: Not verified
Air conditioning: 18,000 BTU Chill Cube A/C + 2nd 8,000 BTU bedroom A/C
Electric fireplace: No
Backup camera: Camera prep (Furrion; camera not included)
Propane tanks: 2
Tire size: ST225/75R15E

Sources & specification notes

View manufacturer specifications ↗ · Checked 2026-10-19.

“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
