Travel trailer · 2027 model year

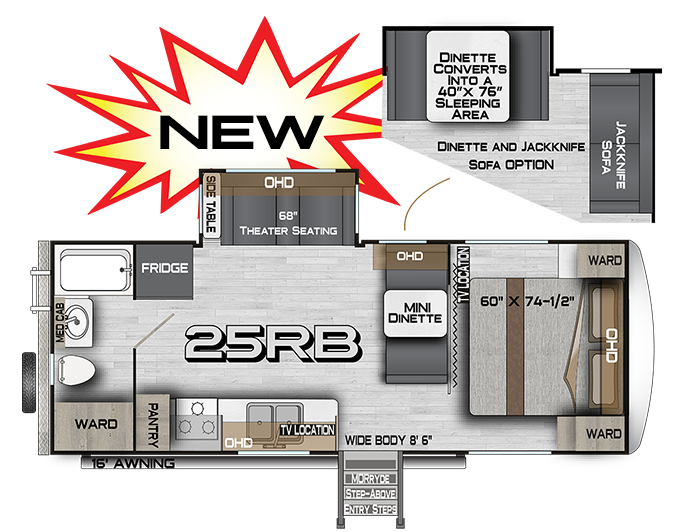

2027 Northwood Arctic Fox Edge 25RB specs & floorplan
Explore the 2027 Northwood Arctic Fox Edge 25RB specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-21. View manufacturer specifications ↗
© Northwood. Illustration may show optional equipment.
At a glance
- Exterior length
- 27′ 3″
- Unloaded weight
- 7,910 lb
- GVWR
- 10,600 lb
Weight basis: Manufacturer unloaded vehicle weight.
2027 brochure specifications. Length includes hitch; height includes A/C; published width includes awning. Fresh-water figure includes water heater. Optional furniture shown in the manufacturer illustration is not assumed installed.
Dimensions & weights
- Exterior length
- 27′ 3″
- Exterior width
- 8′ 6″
- Exterior height
- 11′ 10″
- Shipping / unloaded weight
- 7,910 lb
- GVWR
- 10,600 lb
- Listed cargo capacity
- 2,690 lb
- Listed hitch weight
- 1,100 lb
Living & sleeping
- Sleeping capacity
- Not verified
- Slide-outs
- Not verified
- Main bed
- Not verified
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- Not verified
Tanks & everyday features
- Fresh water
- 100 gal
- Gray water
- 44 gal
- Black water
- 55 gal
- Awning length
- Not verified
- Shore power / electrical service
- Not verified
- Solar equipment
- Not verified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- Not verified
- Cooktop
- Not verified
- Air conditioning
- Not verified
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
2027 brochure specifications. Length includes hitch; height includes A/C; published width includes awning. Fresh-water figure includes water heater. Optional furniture shown in the manufacturer illustration is not assumed installed.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
