Travel trailer · 2027 model year

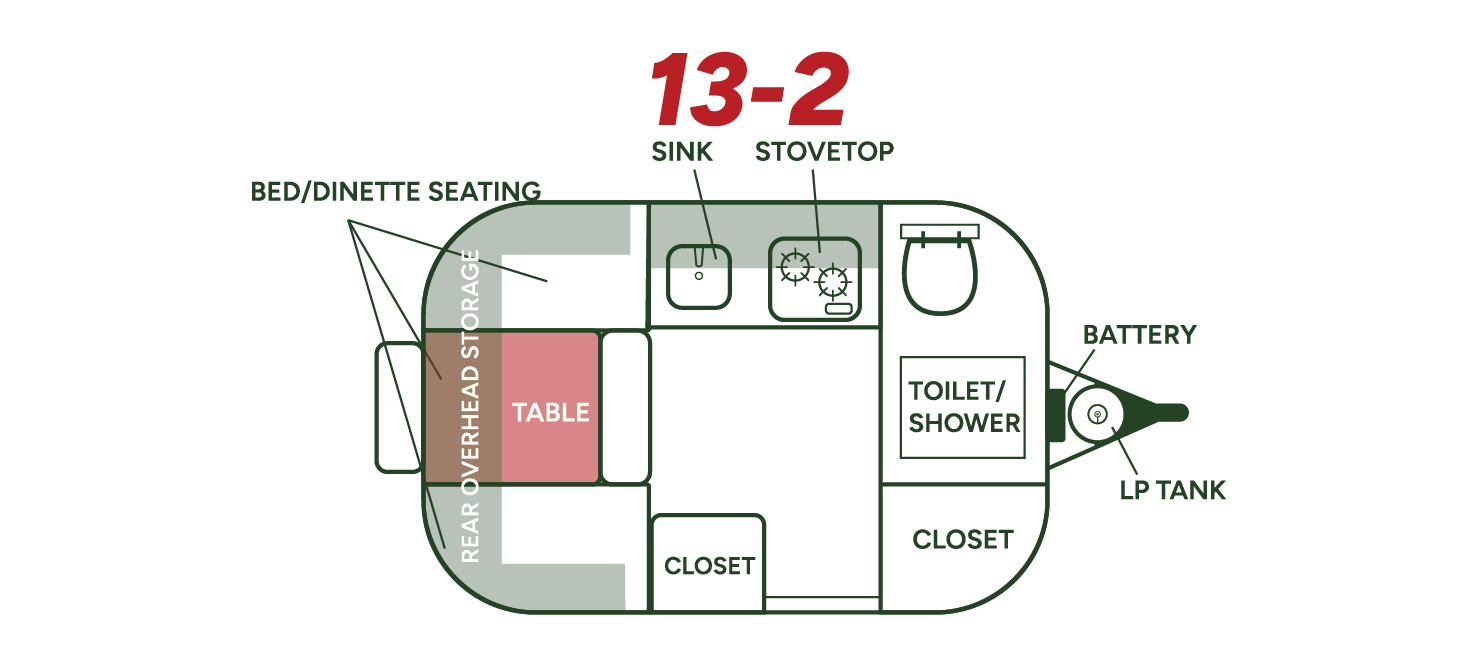

2027 Scamp 13 Standard Layout 2 specs & floorplan
Explore the 2027 Scamp 13 Standard Layout 2 specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-21. View manufacturer specifications ↗
© Scamp. Illustration may show optional equipment.
At a glance
- Exterior length
- 13′ 0″
- Unloaded weight
- 1,600 lb
- GVWR
- 2,200 lb
Weight basis: Manufacturer starting dry weight (shared size/trim specification).
Published weights are starting figures for this size/trim, not a weighed configured unit. Height is to the trailer body; optional A/C can increase clearance. Cargo and layout-specific sleeping capacity are not verified.
Dimensions & weights
- Exterior length
- 13′ 0″
- Exterior width
- 6′ 8″
- Exterior height
- 7′ 6″
- Shipping / unloaded weight
- 1,600 lb
- GVWR
- 2,200 lb
- Listed cargo capacity
- Not verified
- Listed hitch weight
- 180 lb
Living & sleeping
- Sleeping capacity
- Not verified
- Slide-outs
- Not verified
- Main bed
- Not verified
- Bunk beds
- Not verified
- Dinette
- Not verified
- Bathroom
- Not verified
- Refrigerator
- Not verified
Tanks & everyday features
- Fresh water
- 12 gal
- Gray water
- 21 gal
- Black water
- 6 gal
- Awning length
- Not verified
- Shore power / electrical service
- 30 amp standard
- Solar equipment
- Not verified
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- Not verified
- Cooktop
- Not verified
- Air conditioning
- Not verified
- Electric fireplace
- Not verified
- Backup camera
- Not verified
- Propane tanks
- Not verified
- Tire size
- Not verified
Sources & specification notes
View manufacturer specifications ↗ · Checked .
Published weights are starting figures for this size/trim, not a weighed configured unit. Height is to the trailer body; optional A/C can increase clearance. Cargo and layout-specific sleeping capacity are not verified.
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
