Travel trailer · 2027 model year

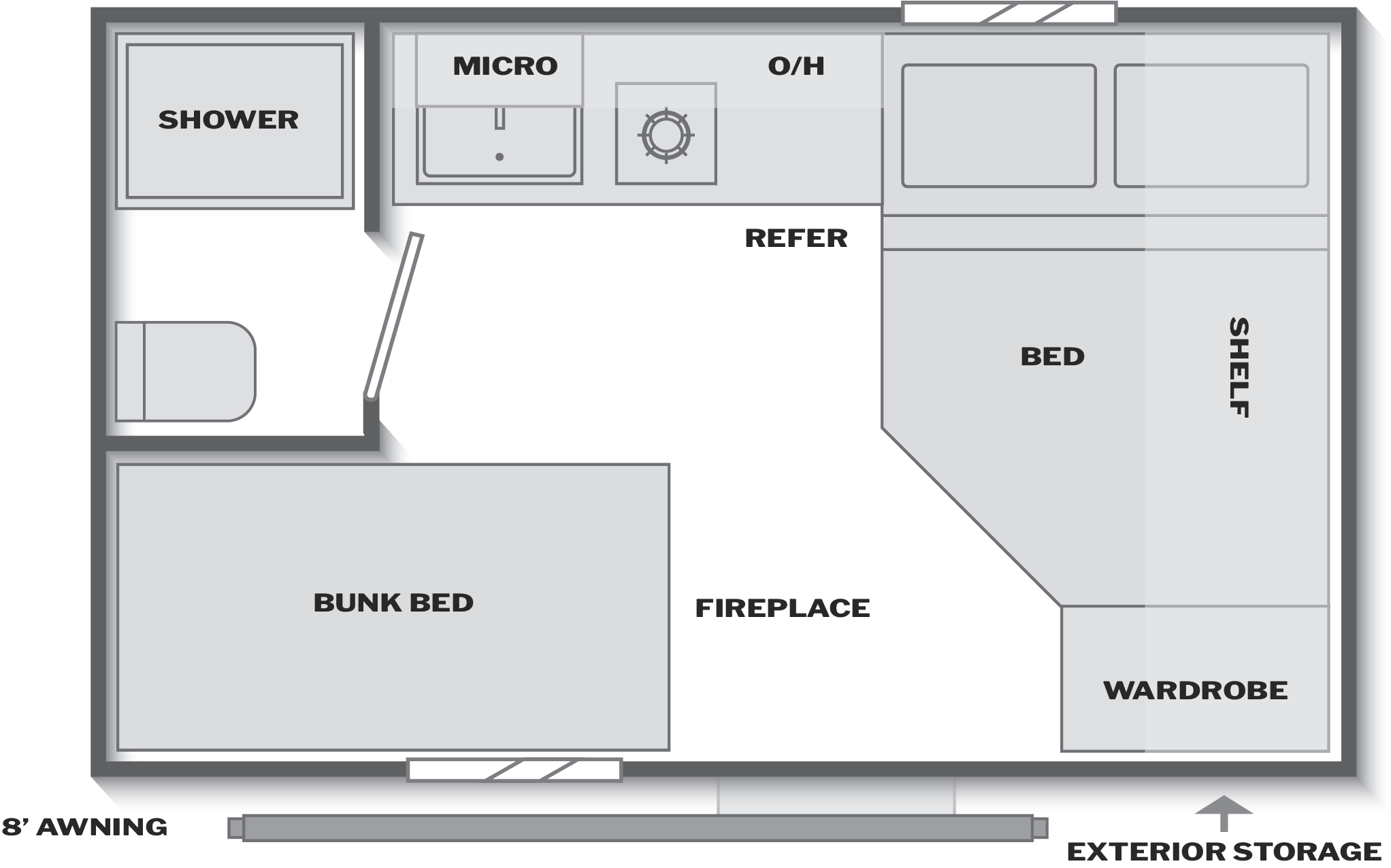

2027 Keystone Coleman 13B specs & floorplan
Explore the 2027 Keystone Coleman 13B specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗
© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 15′ 11″
- Unloaded weight
- 2,506 lb
- Sleeps
- 4
Weight basis: Manufacturer shipping weight.
Dimensions & weights
- Exterior length
- 15′ 11″
- Exterior width
- Not verified
- Exterior height
- 9′ 6″
- Shipping / unloaded weight
- 2,506 lb
- GVWR
- Not verified
- Listed cargo capacity
- 994 lb
- Listed hitch weight
- 352 lb
Living & sleeping
- Sleeping capacity
- 4
- Slide-outs
- 0
- Main bed
- Bed (size not published)
- Bunk beds
- ✓ Yes
- Dinette
- Not shown on floorplan
- Bathroom
- Rear bathroom with shower and toilet
- Refrigerator
- 3 cu. ft. 110V refrigerator
Tanks & everyday features
- Fresh water
- 28 gal
- Gray water
- 34 gal
- Black water
- 34 gal
- Awning length
- 8′ 0″
- Shore power / electrical service
- Not verified
- Solar equipment
- SolarFlex Ready (prep; panels not confirmed)
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- Induction cooktop
- Air conditioning
- Wall-mounted A/C
- Electric fireplace
- ✓ Yes
- Backup camera
- Camera prep (camera not included)
- Propane tanks
- 0
- Tire size
- ST215/75R14D
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
How does the 13B compare?
Add another RV to see the floorplans and specifications side by side.
Compare this to other models →
