Travel trailer · 2027 model year
2027 Keystone Coleman 13R specs & floorplan
Explore the 2027 Keystone Coleman 13R specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗

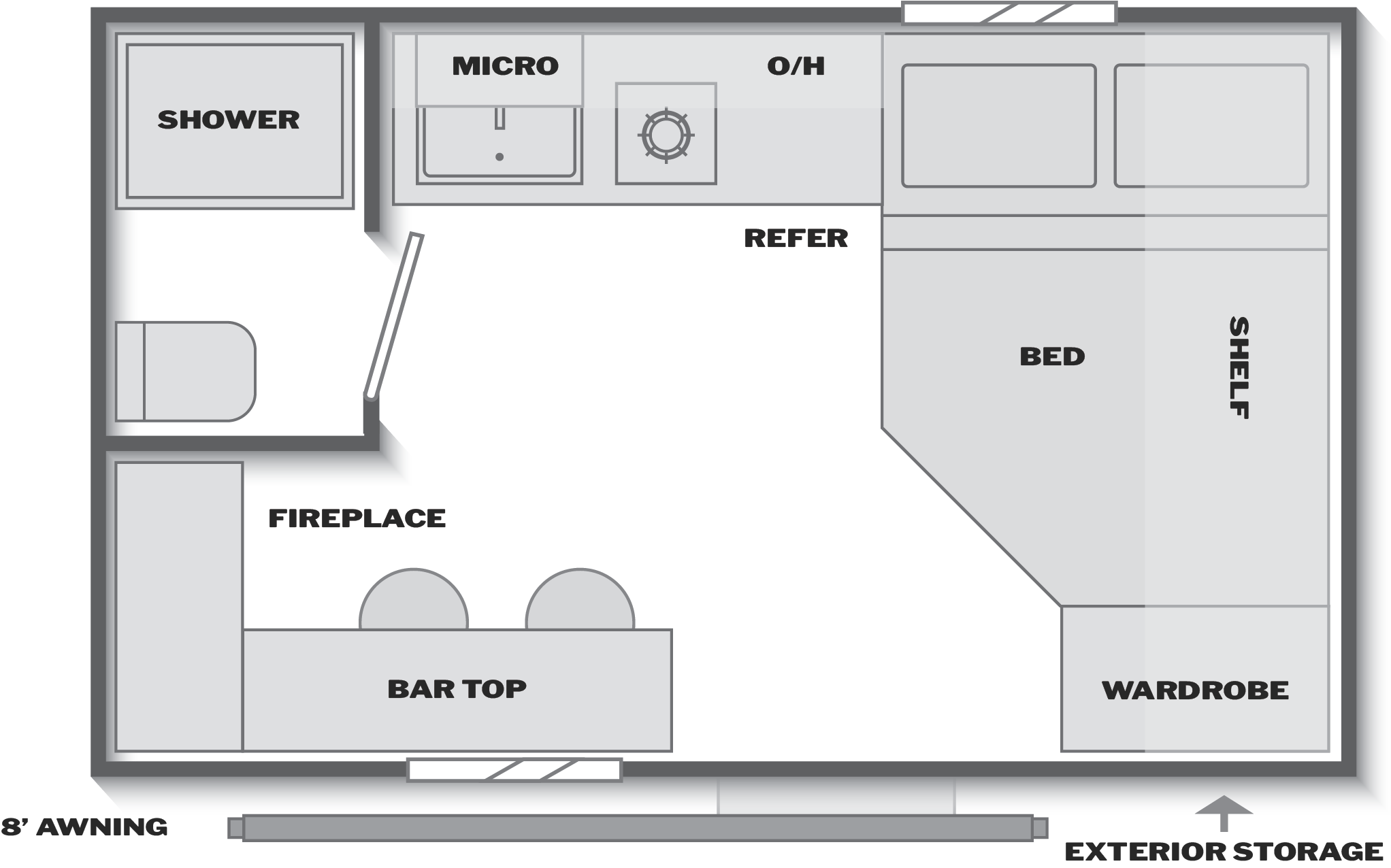

© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 15′ 11″
- Unloaded weight
- 2,483 lb
- Sleeps
- 2
Weight basis: Manufacturer shipping weight.
Dimensions & weights
- Exterior length
- 15′ 11″
- Exterior width
- Not verified
- Exterior height
- 9′ 6″
- Shipping / unloaded weight
- 2,483 lb
- GVWR
- Not verified
- Listed cargo capacity
- 1,017 lb
- Listed hitch weight
- 336 lb
Living & sleeping
- Sleeping capacity
- 2
- Slide-outs
- 0
- Main bed
- Bed (size not published)
- Bunk beds
- No
- Dinette
- Bar top
- Bathroom
- Shower and toilet (location not verified)
- Refrigerator
- 110V · 3 cu ft
Tanks & everyday features
- Fresh water
- 28 gal
- Gray water
- 34 gal
- Black water
- 34 gal
- Awning length
- 8′ 0″
- Shore power / electrical service
- Not verified
- Solar equipment
- SolarFlex Ready (prep; panels not confirmed)
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- Induction cooktop
- Air conditioning
- Wall-mounted A/C
- Electric fireplace
- ✓ Yes
- Backup camera
- Camera prep (camera not included)
- Propane tanks
- 0
- Tire size
- ST215/75R14D
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
