Travel trailer · 2027 model year
2027 Keystone Coleman 17R specs & floorplan
Explore the 2027 Keystone Coleman 17R specification sheet: dimensions, weights, sleeping arrangements, tank capacities and available equipment.
Compare this to other models →Source checked 2026-10-19. View manufacturer specifications ↗

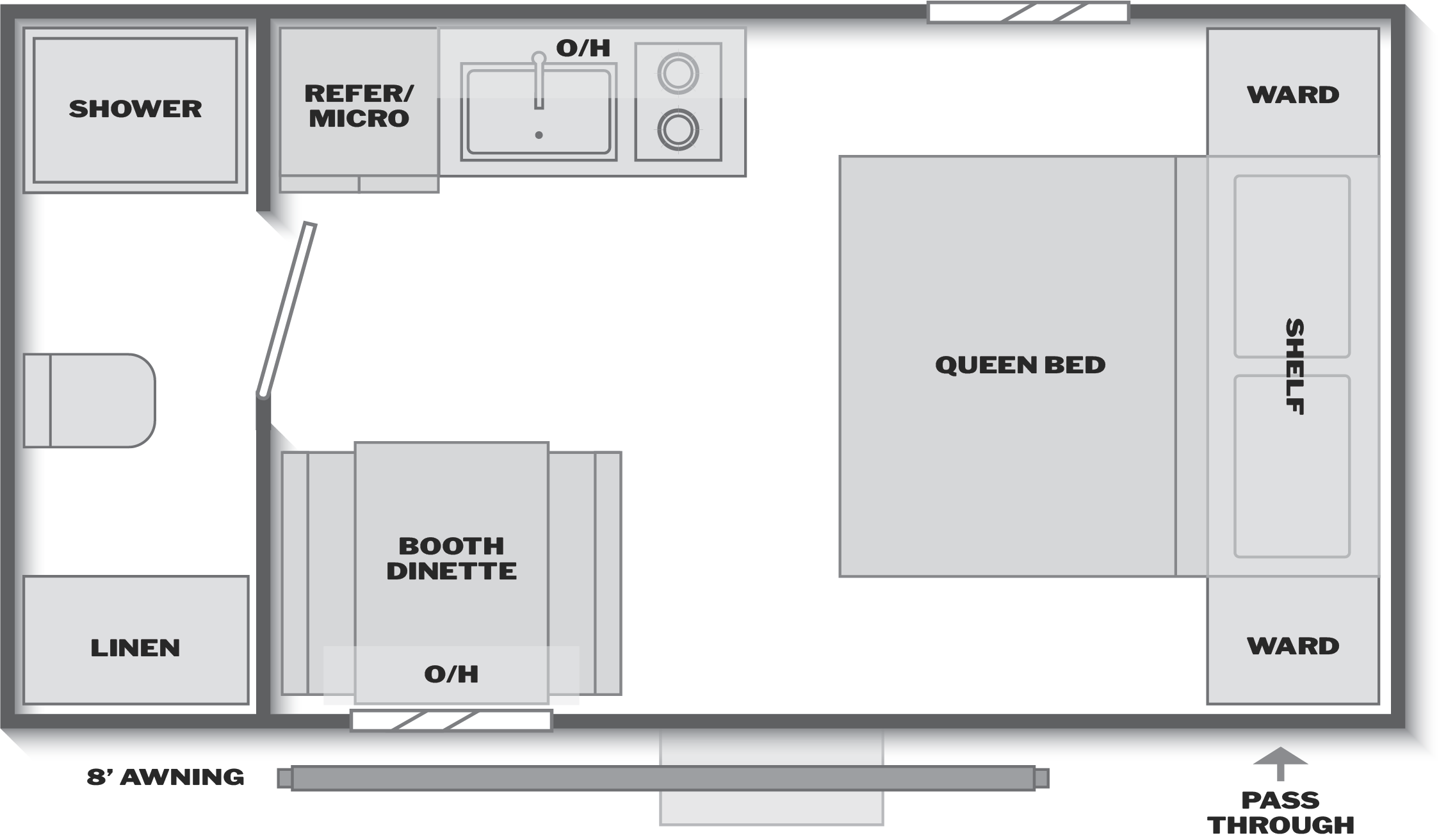

© Keystone RV. Illustration may show optional equipment.
At a glance
- Exterior length
- 20′ 5″
- Unloaded weight
- 3,061 lb
- Sleeps
- 3
Weight basis: Manufacturer shipping weight.
Dimensions & weights
- Exterior length
- 20′ 5″
- Exterior width
- Not verified
- Exterior height
- 9′ 5″
- Shipping / unloaded weight
- 3,061 lb
- GVWR
- Not verified
- Listed cargo capacity
- 1,239 lb
- Listed hitch weight
- 368 lb
Living & sleeping
- Sleeping capacity
- 3
- Slide-outs
- 0
- Main bed
- Queen · 60 × 74 in
- Bunk beds
- No
- Dinette
- Booth dinette
- Bathroom
- Rear bathroom with shower and toilet
- Refrigerator
- 12V · 3 cu ft
Tanks & everyday features
- Fresh water
- 21 gal
- Gray water
- 34 gal
- Black water
- 34 gal
- Awning length
- 8′ 0″
- Shore power / electrical service
- Not verified
- Solar equipment
- SolarFlex Ready (prep; panels not confirmed)
- Outdoor kitchen
- Not verified
- Washer/dryer prep
- Not verified
- Microwave
- ✓ Yes
- Cooktop
- 2-burner gas range
- Air conditioning
- Wall-mounted A/C
- Electric fireplace
- Not verified
- Backup camera
- Camera prep (camera not included)
- Propane tanks
- 1
- Tire size
- ST215/75R14D
Sources & specification notes
View manufacturer specifications ↗ · Checked .
“Not verified” means a confirmed value is unavailable. “Not listed” does not mean a feature is absent. Optional equipment is not confirmed as installed. Check the exact model year, configuration and unit labels with the manufacturer. This specification sheet does not establish towing compatibility.
How does the 17R compare?
Add another RV to see the floorplans and specifications side by side.
